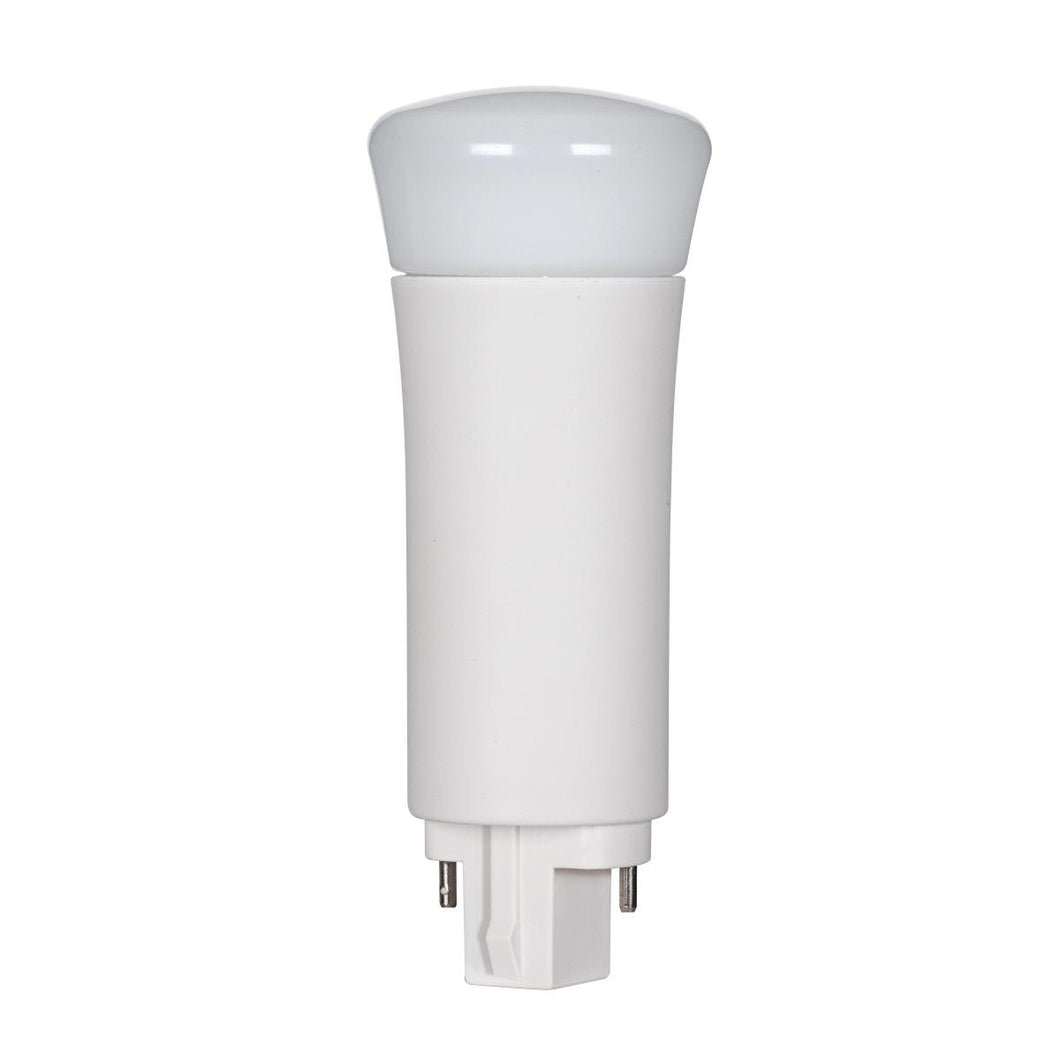

9W LED PL 2-Pin; 3000K; 850 Lumens; G24d base; 50000 Average rated hours; 120 Deg. beam spread; Type A; Ballast dependent
General
Status | Active |
Watts | 9 |
Ballast Type | Type A |
Shape | PL |
Base | 2-Pin |
ANSI Base | G24d |
Finish | Frosted |
CCT (Kelvin) | 3000 |
Temperature | Warm White |
CRI | 82 |
Lumens | 850 |
Beam Spread | 120 |
Dimmable | Non-Dimmable |
Hours Rated | 50000 |
Lamp Type | PL |
Burning Position | Vertical Operation |
Technology | LED |
Electrical
Watts | 9 |
Ballasting Requirements | Ballast required |
Ballast Type | Type A |
CCT (Kelvin) | 3000 |
Temperature | Warm White |
CRI | 82 |
Lumens | 850 |
Beam Spread | 120 |
Dimmable | Non-Dimmable |
Dimming Type | N/A |
Hours Rated | 50000 |
Burning Position | Vertical Operation |
Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
MOL | 4.69 |
MOD | 1.91 |
Shape | PL |
Base | 2-Pin |
ANSI Base | G24d |
Finish | Frosted |
Housing Color | White |
Additional Information
Enclosure Rating | Enclosed Rated Lamp |
Warranty | 5 Year Limited - 10 hr per day |
Compliance
Safety Listing | cULus Classified |
Location Rating | Damp |
Energy Star | No |
CEC Status | Lawful for sale in California |
RoHS Compliant | Yes |
SDS Sheet | LED Lamp |
Packaging
Each UPC | 045923098628 |
Each Quantity | 1 |
Each Length (in.) | 2.00 |
Each Width (in.) | 2.00 |
Each Height (in.) | 4.80 |
Each Weight (lb.) | |
Each Cube (CuFt.) | 0.0108 |
Pack Type | Box |
Inner UPC | 20045923098622 |
Inner Quantity | 10 |
Inner Length (in.) | 10.00 |
Inner Width (in.) | 4.17 |
Inner Height (in.) | 5.12 |
Inner Weight (lb.) | 0.00 |
Inner Cube (CuFt.) | 0.1198 |
Case UPC | 10045923098625 |
Case Quantity | 50 |
Case Length (in.) | 11.00 |
Case Width (in.) | 10.60 |
Case Height (in.) | 10.60 |
Case Weight (lb.) | 15.30 |
Case Cube (CuFt.) | 0.6936 |
