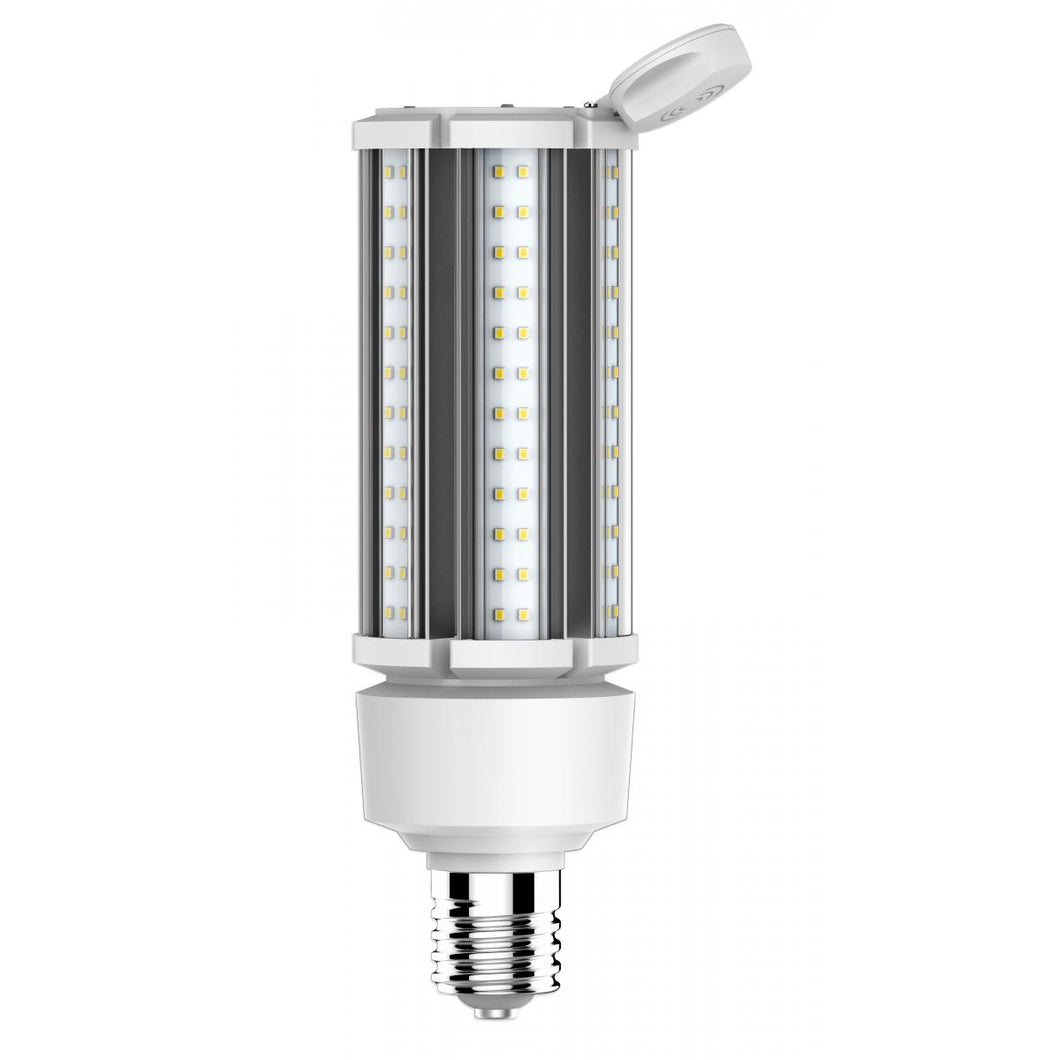

63W LED HID Replacement; 5000K; Mogul base; 100-277V
General
| Status | Active |
| Watts | 63 |
| Volts | 100V-277V |
| Shape | Corncob |
| Base | Mogul |
| ANSI Base | E39 |
| Finish | Clear |
| CCT (Kelvin) | 5000 |
| Temperature | Natural Light |
| CRI | 80+ |
| Lumens | 7875 |
| Beam Spread | 300 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | Corncob |
| Technology | LED |
| Min Compartment Size | Length 11 in. Width 8 in. Depth 8 in. |
| Ballasting Requirements | Ballast by-pass - Direct wire only 100V - 277V |
Electrical
| Watts | 63 |
| Volts | 100V-277V |
| Ballasting Requirements | Ballast by-pass - Direct wire only 100V - 277V |
| CCT (Kelvin) | 5000 |
| Temperature | Natural Light |
| CRI | 80+ |
| Lumens | 7875 |
| Beam Spread | 300 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Power Factor | >0.9 |
| Hours Rated | 50000 |
| Burning Position | Universal |
| Surge Protection | Built-in surge protection |
| Operating Temperature | -30C (-22F) to a maximum of +60C (+140F) |
Physical
| MOL | 10.88 |
| MOD | 3.38 |
| Shape | Corncob |
| Base | Mogul |
| ANSI Base | E39 |
| Finish | Clear |
| Lens Finish | Clear |
| Housing Color | White |
| Photocell | Has Motion Sensor |
Additional Information
| Additional Info | Built-in motion sensor - Detection area 32-feet; 30 second turn off |
| Enclosure Rating | Enclosed Rated Lamp |
| Min Compartment Size | Length 11 in. Width 8 in. Depth 8 in. |
| Rated For Enclosed Fixture | Yes |
| IP Rating | IP42 |
| Warranty | 5 Year Limited - Hi-Pro |
Compliance
| Safety Listing | cULus Classified |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PL0WTVTP0XAD |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923089893 |
| Each Quantity | 1 |
| Each Length (in.) | 3.66 |
| Each Width (in.) | 3.66 |
| Each Height (in.) | 12.24 |
| Each Weight (lb.) | 2.07 |
| Each Cube (CuFt.) | 0.0920 |
| Inner UPC | 20045923089897 |
| Inner Quantity | 6 |
| Inner Length (in.) | 11.61 |
| Inner Width (in.) | 7.87 |
| Inner Height (in.) | 12.83 |
| Inner Weight (lb.) | 13.49 |
| Inner Cube (CuFt.) | 0.6578 |
| Case UPC | 10045923089890 |
| Case Quantity | 12 |
| Case Length (in.) | 16.54 |
| Case Width (in.) | 12.21 |
| Case Height (in.) | 13.58 |
| Case Weight (lb.) | 28.18 |
| Case Cube (CuFt.) | 1.5390 |
