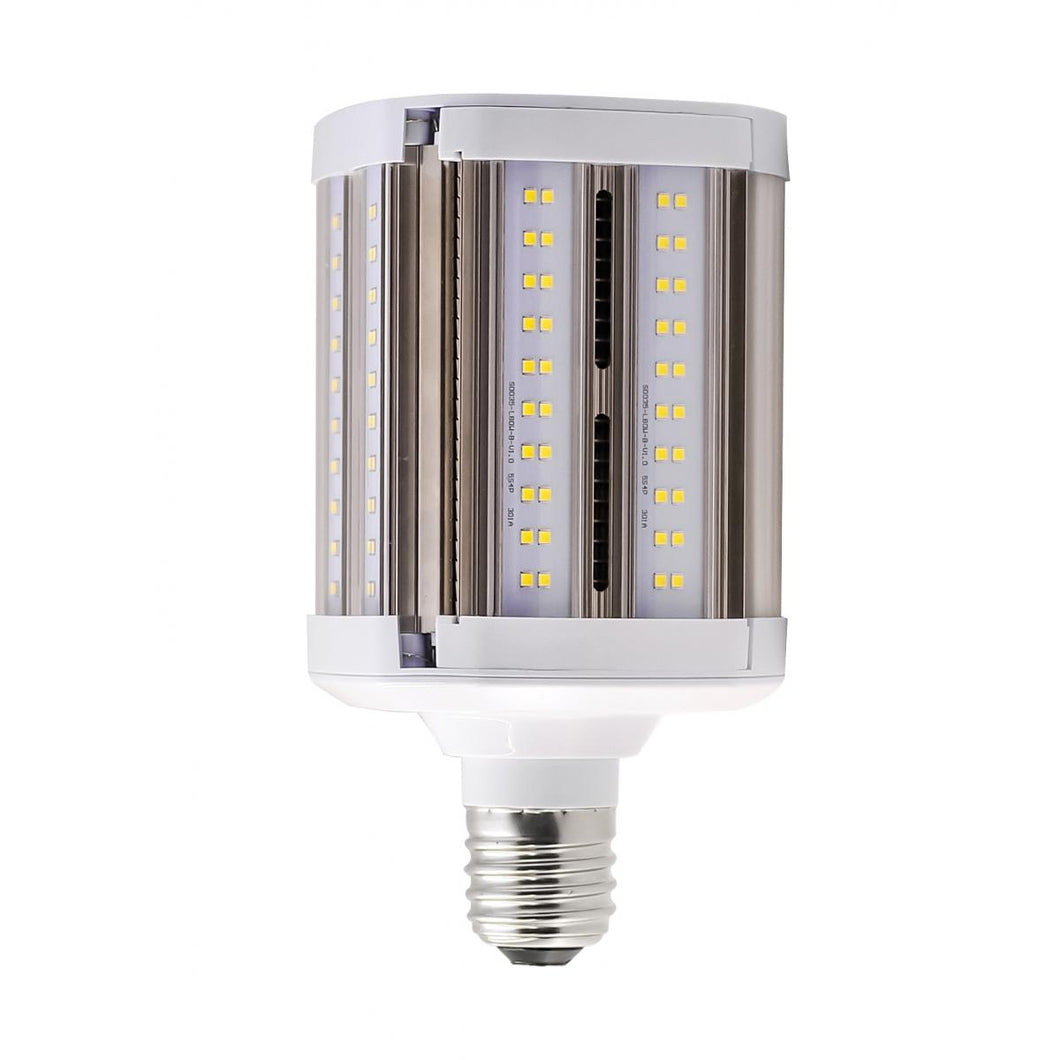

80W LED Hi-lumen shoe box style lamp for commercial fixture applications; 5000K; Mogul base; 100-277V
General
| Status | Active |
| Watts | 80 |
| HID Equivalent | 250 |
| Volts | 100V-277V |
| Shape | Corncob |
| Base | Mogul |
| ANSI Base | E39 |
| Finish | Clear |
| CCT (Kelvin) | 5000 |
| Temperature | Natural Light |
| CRI | 80+ |
| Lumens | 10000 |
| Beam Spread | 180 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | Corncob |
| Technology | LED |
| Min Compartment Size | Length 9.2 in. Width 11 in. Depth 11 in. |
| Ballasting Requirements | Direct wire voltage range 100-277V |
Electrical
| Watts | 80 |
| HID Equivalent | 250 |
| Volts | 100V-277V |
| Ballasting Requirements | Direct wire voltage range 100-277V |
| Operating Frequency | 50/60 Hz |
| CCT (Kelvin) | 5000 |
| Temperature | Natural Light |
| CRI | 80+ |
| Lumens | 10000 |
| Beam Spread | 180 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Power Factor | >0.9 |
| Hours Rated | 50000 |
| Burning Position | Horizontal Operation |
| Operating Temperature | -30C (-22F) to a maximum of +45C (+113F) |
Physical
| MOL | 8.69 |
| MOD | 4.38 |
| Shape | Corncob |
| Base | Mogul |
| ANSI Base | E39 |
| Finish | Clear |
| Lens Finish | Clear |
| Housing Color | White |
Additional Information
| Enclosure Rating | Enclosed Rated Lamp |
| Min Compartment Size | Length 9.2 in. Width 11 in. Depth 11 in. |
| Rated For Enclosed Fixture | Yes |
| IP Rating | IP64 |
| Warranty | 5 Year Limited - Hi-Pro |
Compliance
| Safety Listing | cULus Classified |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | P5NWB4DX |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923089329 |
| Each Quantity | 1 |
| Each Length (in.) | 10.32 |
| Each Width (in.) | 5.71 |
| Each Height (in.) | 6.30 |
| Each Weight (lb.) | 3.46 |
| Each Cube (CuFt.) | 0.2083 |
| Pack Type | Box |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923089326 |
| Case Quantity | 4 |
| Case Length (in.) | 10.91 |
| Case Width (in.) | 12.02 |
| Case Height (in.) | 13.20 |
| Case Weight (lb.) | 15.21 |
| Case Cube (CuFt.) | 0.9714 |
