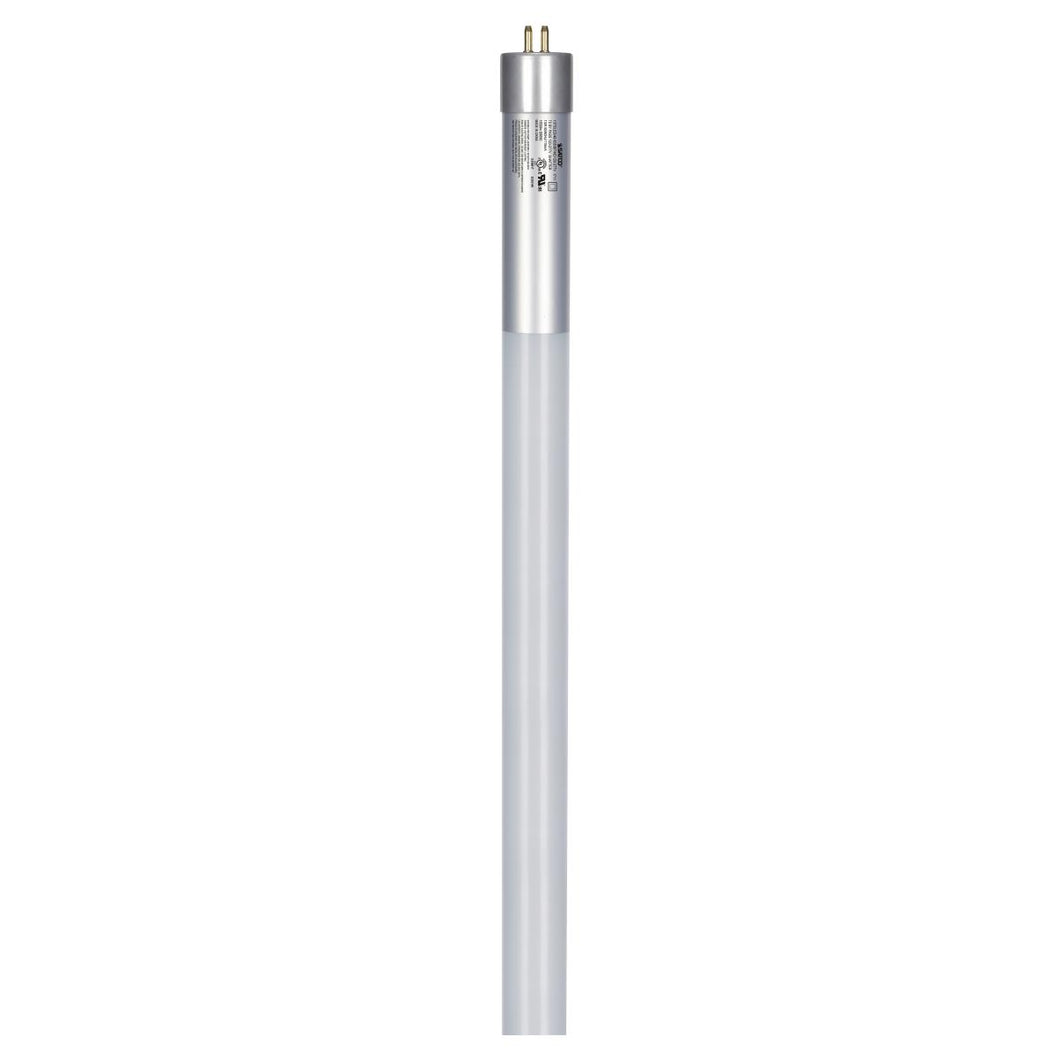

13W T8 LED; Medium bi-pin base; 3000K; 50000 Hours; 1800 Lumens; Type A/B; Ballast Dependant or Ballast Bypass; Single or Double Ended Wiring
General
| Status | Active |
| Watts | 13 |
| Fluorescent Equivalent | 28; 32 |
| Volts | 120V-277V |
| Ballast Type | Type A/B |
| Shape | T8 |
| Base | Medium Bi Pin |
| ANSI Base | G13 |
| Nominal Length | 48 |
| Finish | Frosted |
| CCT (Kelvin) | 3000 |
| Temperature | Warm White |
| CRI | 83 |
| Lumens | 1800 |
| Beam Spread | 240 |
| Dimmable | Non-Dimmable in Bypass Mode |
| Hours Rated | 50000 |
| Lamp Type | Linear |
| Technology | LED |
Electrical
| Watts | 13 |
| Fluorescent Equivalent | 28; 32 |
| Volts | 120V-277V |
| Ballasting Requirements | Ballast required (Type A) or Ballast bypass (Type B) |
| Ballast Type | Type A/B |
| Operating Frequency | 50/60 Hz |
| CCT (Kelvin) | 3000 |
| Temperature | Warm White |
| CRI | 83 |
| Lumens | 1800 |
| Beam Spread | 240 |
| Dimmable | Non-Dimmable in Bypass Mode |
| Power Factor | 0.96 |
| Hours Rated | 50000 |
| Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
| MOL | 48 |
| MOD | 1 |
| Nominal Length | 48 |
| Shape | T8 |
| Base | Medium Bi Pin |
| ANSI Base | G13 |
| Finish | Frosted |
| Housing Color | White |
Additional Information
| Additional Info | Do not use with dimmers in by-pass mode. Check the ballast for dimming capability when using with a ballast. |
| Shatter-Proof Type | PET Coated |
| Specification Note | Ballast Compatible - bare lamp is 12W; Ballast Bypass - 13W.|Protection from arcing- Power must be turned off prior to installing lamps. Sockets must be in good working order, not broken, cracked or electrically compromised. If arcing occurs at the l |
| Warranty | 5 Year Limited - T8 LED Bulbs |
Compliance
| Safety Listing | cULus Listed for Type A; cULus Classified for Type B |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PL20BPLJYLDH |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| NSF Approved | Yes - Approved |
Packaging
| Each UPC | 045923088902 |
| Each Quantity | 1 |
| Each Length (in.) | 48.00 |
| Each Width (in.) | 1.10 |
| Each Height (in.) | 1.10 |
| Each Weight (lb.) | 0.50 |
| Each Cube (CuFt.) | 0.0326 |
| Pack Type | Sleeve |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923088909 |
| Case Quantity | 25 |
| Case Length (in.) | 50.20 |
| Case Width (in.) | 7.30 |
| Case Height (in.) | 7.30 |
| Case Weight (lb.) | 15.90 |
| Case Cube (CuFt.) | 1.5012 |
