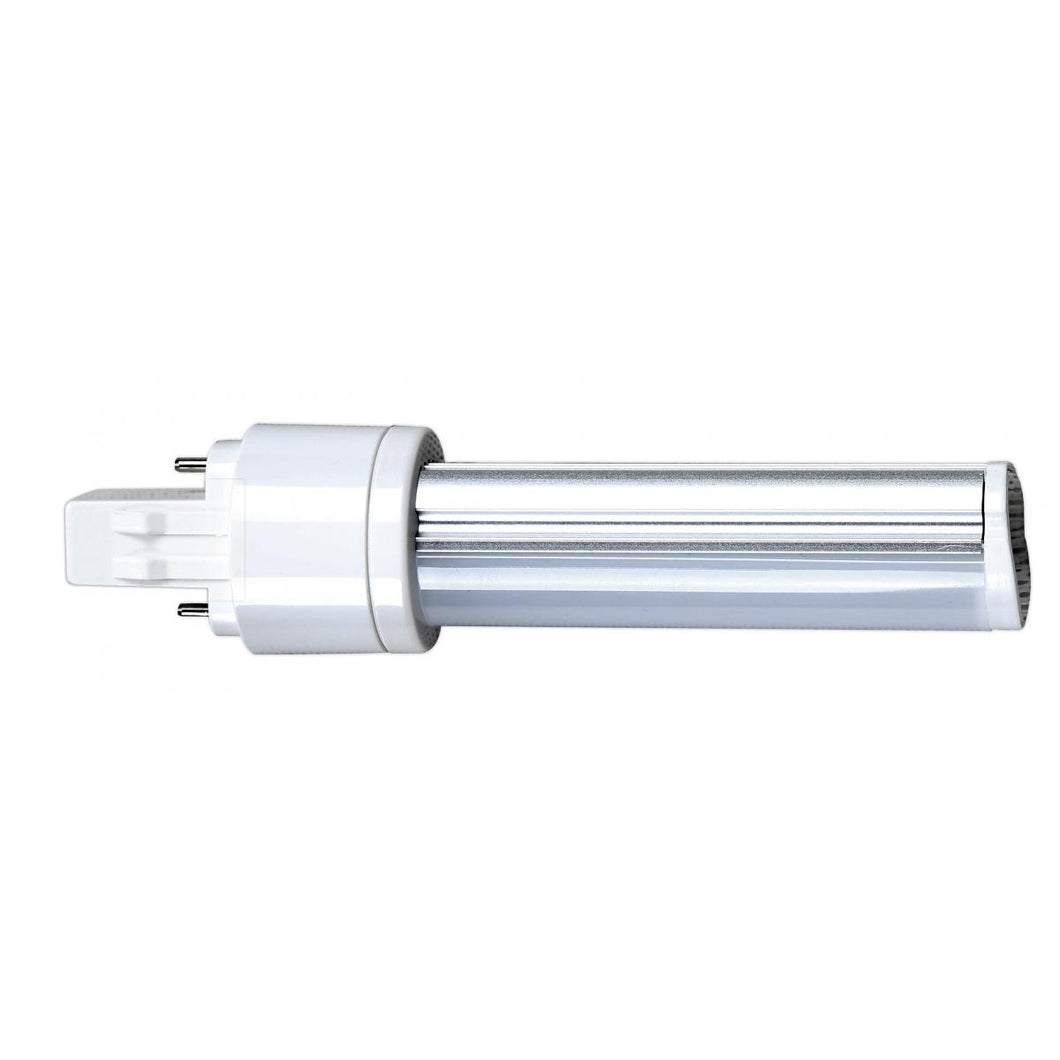

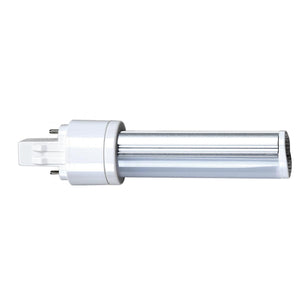

6W LED PL 2-PIN; 2700K; 570 Lumens; GX23 base; 50000 Average rated hours; 120 deg. beam spread; 120-277V; Type B; Ballast Bypass
General
| Status | Active |
| Watts | 6 |
| Fluorescent Equivalent | 13 |
| Volts | 120V-277V |
| Ballast Type | Type B |
| Shape | PL |
| Base | GX23 |
| ANSI Base | GX23 |
| Finish | Frosted White |
| CCT (Kelvin) | 2700 |
| Temperature | Warm White |
| CRI | 83 |
| Lumens | 570 |
| Beam Spread | 120 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | PL |
| Technology | LED |
Electrical
| Watts | 6 |
| Fluorescent Equivalent | 13 |
| Volts | 120V-277V |
| Ballasting Requirements | Ballast Bypass |
| Ballast Type | Type B |
| Operating Frequency | 50/60 Hz |
| CCT (Kelvin) | 2700 |
| Temperature | Warm White |
| CRI | 83 |
| Lumens | 570 |
| Beam Spread | 120 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Hours Rated | 50000 |
| Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
| MOL | 5.81 |
| MOD | 1.25 |
| Shape | PL |
| Base | GX23 |
| ANSI Base | GX23 |
| Finish | Frosted White |
| Housing Color | White |
| Weight (lb.) | 0.16 |
Additional Information
| Enclosure Rating | Enclosed Rated Lamp |
| Warranty | 5 Year Limited - 10 hr per day |
Compliance
| Safety Listing | cULus Classified |
| Location Rating | Damp |
| Energy Star | No |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923087257 |
| Each Quantity | 1 |
| Each Length (in.) | 6.38 |
| Each Width (in.) | 1.65 |
| Each Height (in.) | 1.65 |
| Each Weight (lb.) | 0.21 |
| Each Cube (CuFt.) | 0.0097 |
| Pack Type | Box |
| Inner UPC | 20045923087251 |
| Inner Quantity | 10 |
| Inner Length (in.) | 9.10 |
| Inner Width (in.) | 3.50 |
| Inner Height (in.) | 7.10 |
| Inner Weight (lb.) | 2.10 |
| Inner Cube (CuFt.) | 0.1269 |
| Case UPC | 10045923087254 |
| Case Quantity | 50 |
| Case Length (in.) | 18.90 |
| Case Width (in.) | 9.60 |
| Case Height (in.) | 8.30 |
| Case Weight (lb.) | 11.40 |
| Case Cube (CuFt.) | 0.8451 |
