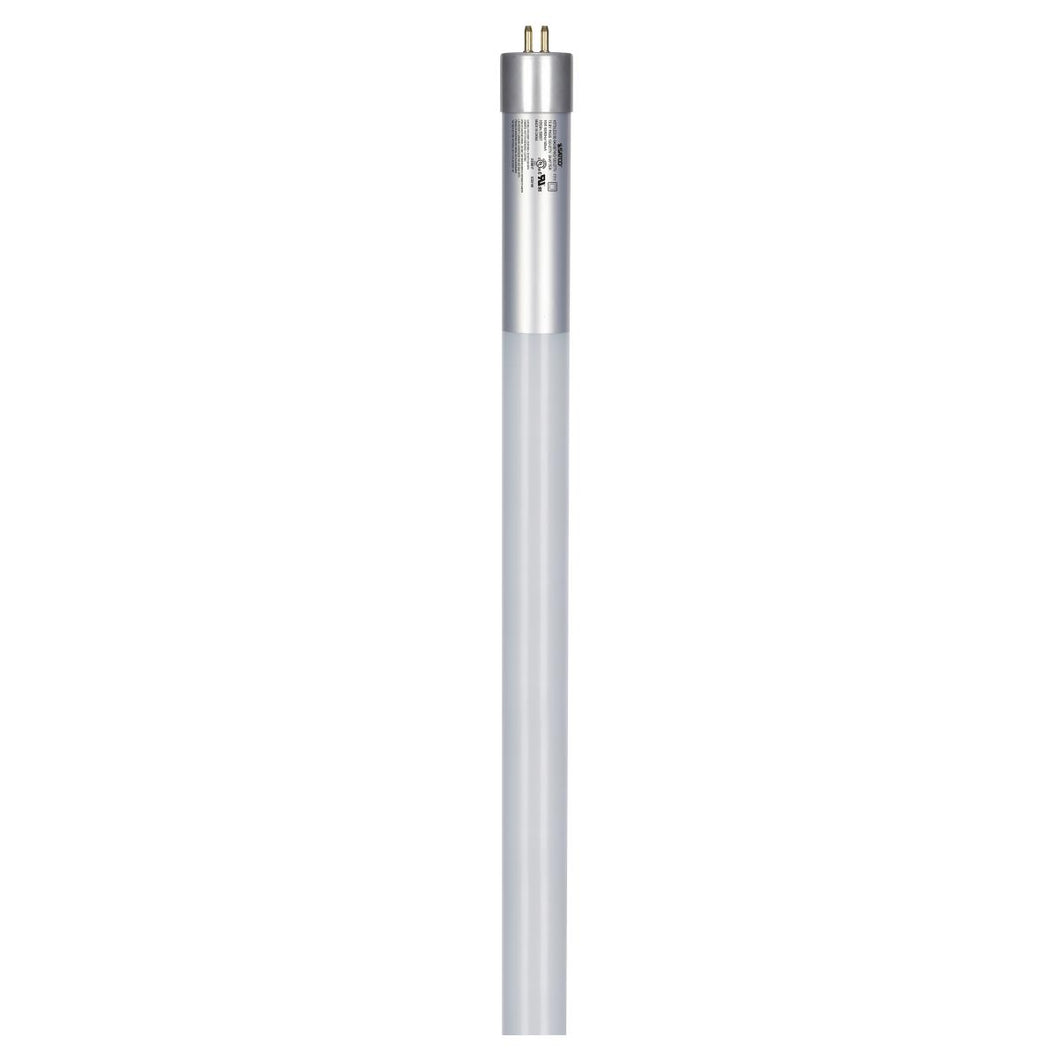

16W T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 1850 Lumens; 120-277V; Type B; Ballast Bypass; Single Ended Wiring
General
Status | Active |
Watts | 16 |
Volts | 120V-277V |
Ballast Type | Type B |
Shape | T5 |
Base | Miniature Bi Pin |
ANSI Base | G5 |
Nominal Length | 36 |
Finish | Frosted |
CCT (Kelvin) | 4000 |
Temperature | Cool White |
CRI | 83 |
Lumens | 1850 |
Beam Spread | 240 |
Dimmable | Non-Dimmable |
Hours Rated | 50000 |
Lamp Type | Linear |
Technology | LED |
Electrical
Watts | 16 |
Volts | 120V-277V |
Ballasting Requirements | Ballast Bypass |
Ballast Type | Type B |
Operating Frequency | 50/60 Hz |
CCT (Kelvin) | 4000 |
Temperature | Cool White |
CRI | 83 |
Lumens | 1850 |
Beam Spread | 240 |
Dimmable | Non-Dimmable |
Dimming Type | N/A |
Hours Rated | 50000 |
Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
MOL | 36 |
MOD | 0.88 |
Nominal Length | 36 |
Shape | T5 |
Base | Miniature Bi Pin |
ANSI Base | G5 |
Finish | Frosted |
Housing Color | Silver |
Additional Information
Shatter-Proof Type | Yes |
Warranty | 5 Year Limited - T5 LED Bulbs - Ballast Bypass |
Compliance
Safety Listing | cULus Classified |
Location Rating | Damp |
Energy Star | No |
CEC Status | Lawful for sale in California |
RoHS Compliant | Yes |
NSF Approved | Yes - Approved |
Packaging
Each UPC | 045923086977 |
Each Quantity | 1 |
Each Length (in.) | 34.00 |
Each Width (in.) | 0.80 |
Each Height (in.) | 0.80 |
Each Weight (lb.) | 0.30 |
Each Cube (CuFt.) | 0.0122 |
Pack Type | Sleeve |
Inner Quantity | 0 |
Inner Length (in.) | 0.00 |
Inner Width (in.) | 0.00 |
Inner Height (in.) | 0.00 |
Inner Weight (lb.) | 0.00 |
Inner Cube (CuFt.) | 0.0000 |
Case UPC | 10045923086974 |
Case Quantity | 25 |
Case Length (in.) | 36.30 |
Case Width (in.) | 5.20 |
Case Height (in.) | 5.20 |
Case Weight (lb.) | 10.70 |
Case Cube (CuFt.) | 0.5508 |
