Energy Efficient Lighting

>
S8690 - Trinity ETC

S8690 13T5/LED/46-835/BP/HE/120-277V

Regular price
$12.95
Sale price
$12.95
Tax included. Shipping calculated at checkout.

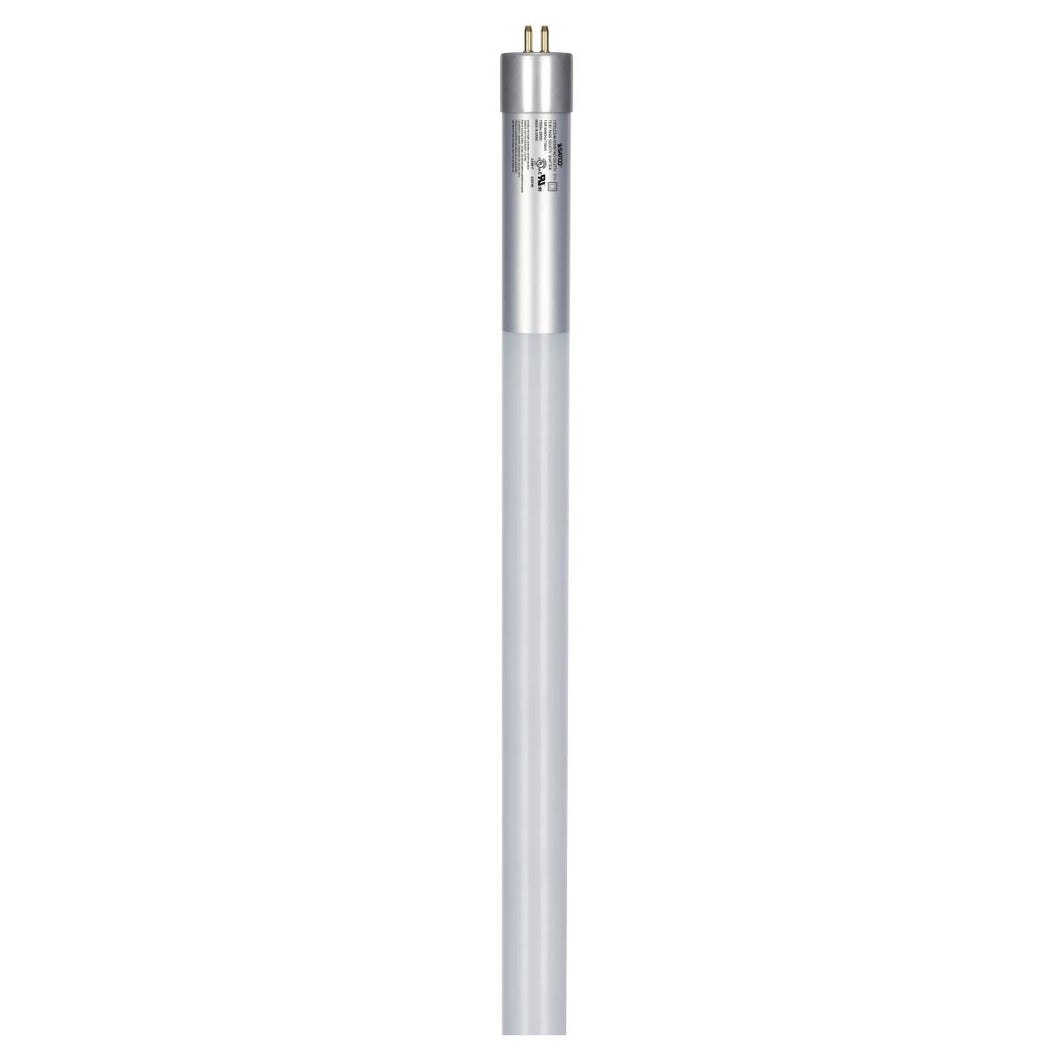

13W T5 LED; Miniature bi-pin base; 3500K; 50000 Average rated hours; 1600 Lumens; 120-277V; Type B; Ballast Bypass; Single Ended Wiring



General
Status Active
Watts 13
Volts 120V-277V
Ballast Type Type B
Shape T5
Base Miniature Bi Pin
ANSI Base G5
Nominal Length 48
Finish Frosted
CCT (Kelvin) 3500
Temperature Neutral White
CRI 83
Lumens 1600
Beam Spread 240
Dimmable Non-Dimmable
Hours Rated 50000
Lamp Type Linear
Technology LED
Electrical
Watts 13
Volts 120V-277V
Ballasting Requirements Ballast Bypass
Ballast Type Type B
Operating Frequency 50/60 Hz
CCT (Kelvin) 3500
Temperature Neutral White
CRI 83
Lumens 1600
Beam Spread 240
Dimmable Non-Dimmable
Dimming Type N/A
Power Factor 0.91
Hours Rated 50000
Operating Temperature -20C (-4F) to a maximum of +45C (+113F)
Physical
MOL 48
MOD 0.88
Nominal Length 48
Shape T5
Base Miniature Bi Pin
ANSI Base G5
Finish Frosted
Housing Color Silver
Additional Information
Shatter-Proof Type Yes
Warranty 5 Year Limited - T5 LED Bulbs - Ballast Bypass
Compliance
Safety Listing cULus Classified
Location Rating Damp
Energy Star No
DLC Approved Yes
DLC ID PL8VVDCTNIUW
CEC Status Lawful for sale in California
RoHS Compliant Yes
NSF Approved Yes - Approved
Packaging
Each UPC 045923086908
Each Quantity 1
Each Length (in.) 45.80
Each Width (in.) 0.80
Each Height (in.) 0.80
Each Weight (lb.) 0.40
Each Cube (CuFt.) 0.0164
Pack Type Sleeve
Inner Quantity 0
Inner Length (in.) 0.00
Inner Width (in.) 0.00
Inner Height (in.) 0.00
Inner Weight (lb.) 0.00
Inner Cube (CuFt.) 0.0000
Case UPC 10045923086905
Case Quantity 25
Case Length (in.) 48.10
Case Width (in.) 5.20
Case Height (in.) 5.20
Case Weight (lb.) 12.90
Case Cube (CuFt.) 0.7299
