Energy Efficient Lighting

>
S8536 9WPLV/LED/830/BP/2P

S8536 9WPLV/LED/830/BP/2P

Regular price
$10.95
Sale price
$10.95
Tax included. Shipping calculated at checkout.

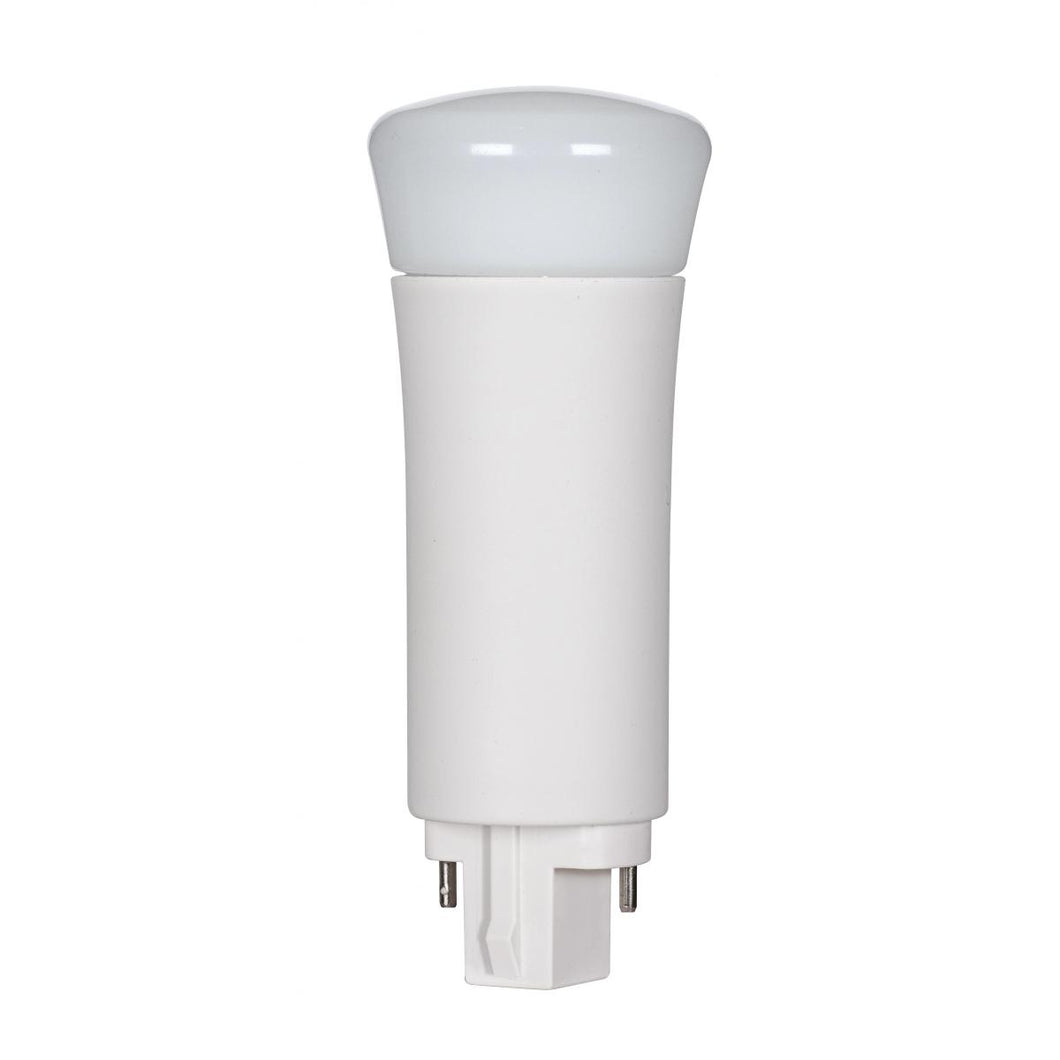

9W LED PL 2-Pin; 3000K; 950 Lumens; G24d base; 50000 Average rated hours; 120 Deg. beam spread; Vertical; Type B; Ballast Bypass



General
Status Active
Watts 9
Fluorescent Equivalent See Notes
Volts 120V-277V
Ballast Type Type B
Shape PL
Base 2-Pin
ANSI Base G24d
Finish Frosted
CCT (Kelvin) 3000
Temperature Warm White
CRI 82
Lumens 950
Beam Spread 120
Dimmable Non-Dimmable
Hours Rated 50000
Lamp Type PL
Burning Position Vertical Operation
Technology LED
Electrical
Watts 9
Fluorescent Equivalent See Notes
Volts 120V-277V
Ballasting Requirements Ballast By-pass; Direct wire voltage range 100-277V
Ballast Type Type B
Operating Frequency 50/60 Hz
CCT (Kelvin) 3000
Temperature Warm White
CRI 82
Lumens 950
Beam Spread 120
Dimmable Non-Dimmable
Dimming Type N/A
Hours Rated 50000
Burning Position Vertical Operation
Operating Temperature -20C (-4F) to a maximum of +45C (+113F)
Physical
MOL 4.69
MOD 1.91
Shape PL
Base 2-Pin
ANSI Base G24d
Finish Frosted
Additional Information
Additional Info In G24d (2-pin) sockets replaces 18 and 26 watt CFLs;|In G24q (4-pin) sockets replaces 13; 18; and 26 watt CFLs
Enclosure Rating Enclosed Rated Lamp
Installation Notes 2-pin LED lamps work in both 2-pin (magnetic) and 4-pin (electronic) sockets.
Warranty 5 Year Limited - 10 hr per day
Compliance
Safety Listing cULus Classified
Location Rating Damp
Energy Star No
CEC Status Lawful for sale in California
RoHS Compliant Yes
SDS Sheet LED Lamp
Packaging
Each UPC 045923085369
Each Quantity 1
Each Length (in.) 1.93
Each Width (in.) 1.93
Each Height (in.) 4.84
Each Weight (lb.) 0.31
Each Cube (CuFt.) 0.0101
Pack Type Box
Inner UPC 20045923085363
Inner Quantity 10
Inner Length (in.) 10.00
Inner Width (in.) 4.17
Inner Height (in.) 5.12
Inner Weight (lb.) 0.00
Inner Cube (CuFt.) 0.1198
Case UPC 10045923085366
Case Quantity 50
Case Length (in.) 11.00
Case Width (in.) 10.60
Case Height (in.) 10.60
Case Weight (lb.) 15.67
Case Cube (CuFt.) 0.6936
