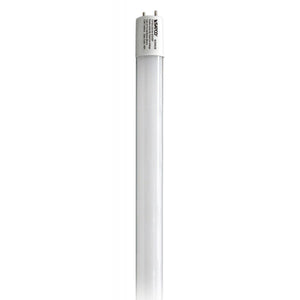

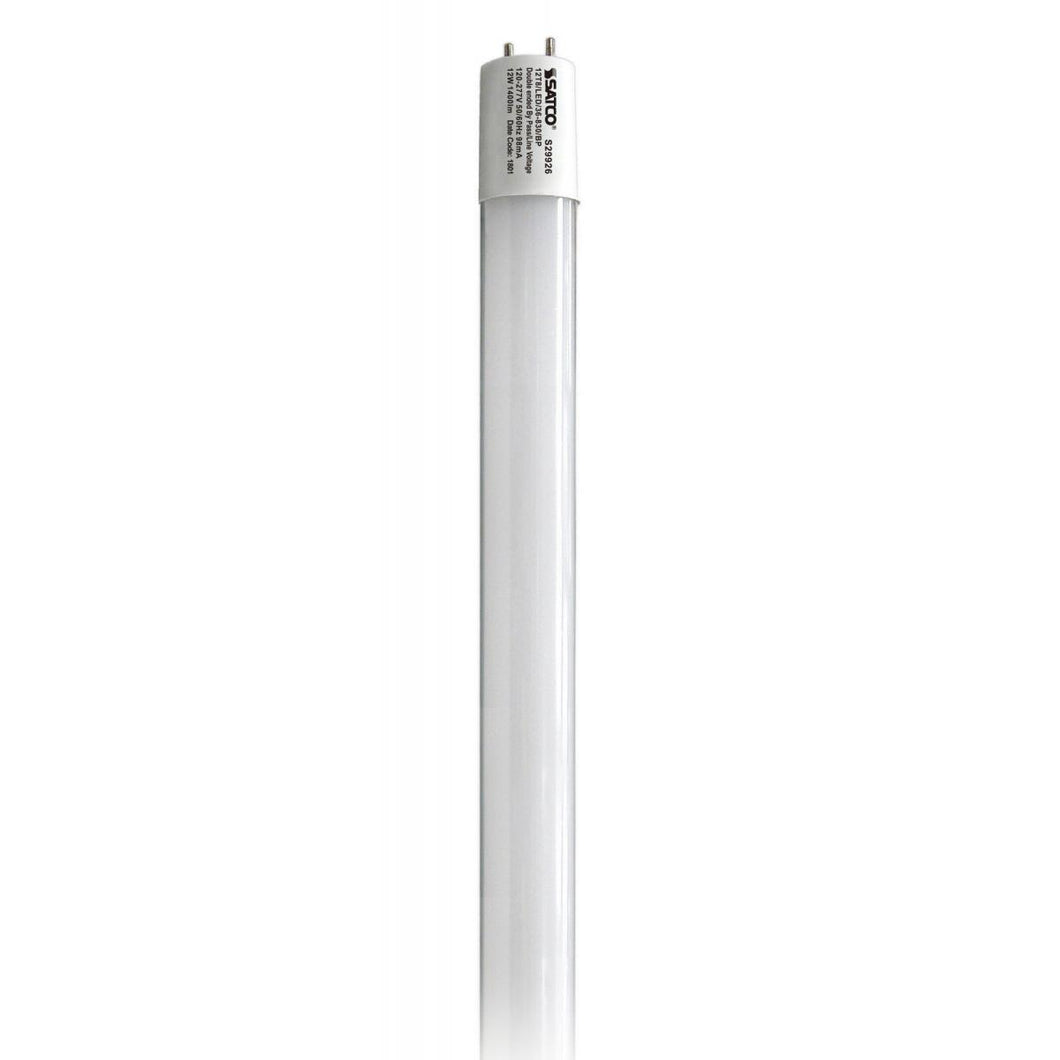

12W T8 LED; Medium bi-pin base; 3000K; 50000 Average rated hours; 1400 Lumens; Type B; Ballast Bypass; Double Ended Wiring
General
| Status | Active |
| Watts | 12 |
| Fluorescent Equivalent | 25 |
| Volts | 120V-277V |
| Ballast Type | Type B |
| Shape | T8 |
| Base | Medium Bi Pin |
| ANSI Base | G13 |
| Nominal Length | 36 |
| Finish | Frosted |
| CCT (Kelvin) | 3000 |
| Temperature | Warm White |
| CRI | 82 |
| Lumens | 1400 |
| Beam Spread | 210 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | Linear |
| Technology | LED |
Electrical
| Watts | 12 |
| Fluorescent Equivalent | 25 |
| Volts | 120V-277V |
| Ballasting Requirements | Ballast Bypass |
| Ballast Type | Type B |
| CCT (Kelvin) | 3000 |
| Temperature | Warm White |
| CRI | 82 |
| Lumens | 1400 |
| Beam Spread | 210 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Power Factor | 0.9 |
| Hours Rated | 50000 |
| Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
| MOL | 36 |
| MOD | 1 |
| Nominal Length | 36 |
| Shape | T8 |
| Base | Medium Bi Pin |
| ANSI Base | G13 |
| Finish | Frosted |
Additional Information
| Additional Info | All glass tube |
| Tube Guard Use | Approved for use with tube guards |
| Installation Notes | Existing wiring to both sockets can remain in place. Will work on both shunted or non-shunted sockets. |
| Specification Note | Built-in shock resistant circuit - (not hot until both ends are installed) |
| Warranty | 5 Year Limited - T8 LED Bulbs - Ballast Bypass |
Compliance
| Safety Listing | cULus Classified |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PL2P0M8SI8W4 |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| NSF Approved | Yes - Approved |
Packaging
| Each UPC | 045923299261 |
| Each Quantity | 1 |
| Each Length (in.) | 35.40 |
| Each Width (in.) | 1.18 |
| Each Height (in.) | 1.18 |
| Each Weight (lb.) | 0.40 |
| Each Cube (CuFt.) | 0.0277 |
| Pack Type | Sleeve |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923299268 |
| Case Quantity | 25 |
| Case Length (in.) | 37.00 |
| Case Width (in.) | 6.30 |
| Case Height (in.) | 6.50 |
| Case Weight (lb.) | 9.69 |
| Case Cube (CuFt.) | 0.8503 |
