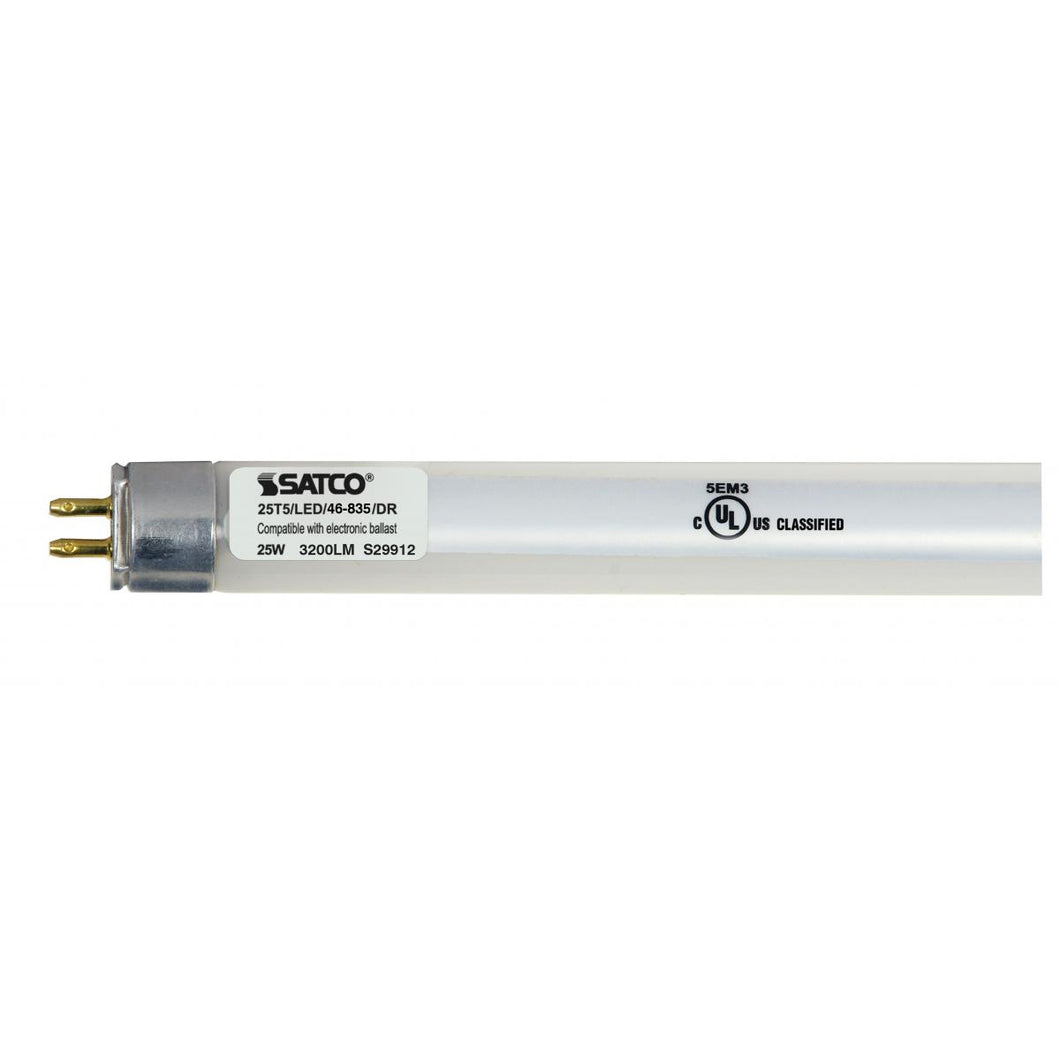

25W T5 LED; Miniature bi-pin base; 3500K; 50000 Average rated hours; 3500 Lumens; Type A; Ballast dependent
General
| Status | Active |
| Watts | 25 |
| Fluorescent Equivalent | 54 |
| Ballast Type | Type A |
| Shape | T5 |
| Base | Miniature Bi Pin |
| ANSI Base | G5 |
| Nominal Length | 48 |
| Finish | Gloss |
| CCT (Kelvin) | 3500 |
| Temperature | Neutral White |
| CRI | 82 |
| Lumens | 3300 |
| Beam Spread | 185 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | Linear |
| Technology | LED |
Electrical
| Watts | 25 |
| Fluorescent Equivalent | 54 |
| Ballasting Requirements | Ballast required |
| Ballast Type | Type A |
| CCT (Kelvin) | 3500 |
| Temperature | Neutral White |
| CRI | 82 |
| Lumens | 3300 |
| Beam Spread | 185 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Power Factor | 0.9 |
| Hours Rated | 50000 |
| Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
| MOL | 48 |
| MOD | 0.63 |
| Nominal Length | 48 |
| Shape | T5 |
| Base | Miniature Bi Pin |
| ANSI Base | G5 |
| Finish | Gloss |
Additional Information
| Includes | Integrated thermal fuse at pins |
| Integrated Features | Integrated thermal fuse at pins |
| Warranty | 5 Year Limited - T5 LED Bulbs |
Compliance
| Safety Listing | cULus |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PLF2500Z49X9 |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| NSF Approved | Yes - Approved |
Packaging
| Each UPC | 045923299124 |
| Each Quantity | 1 |
| Each Length (in.) | 47.60 |
| Each Width (in.) | 0.59 |
| Each Height (in.) | 0.59 |
| Each Weight (lb.) | 0.10 |
| Each Cube (CuFt.) | 0.0093 |
| Pack Type | Sleeve |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923299121 |
| Case Quantity | 10 |
| Case Length (in.) | 48.40 |
| Case Width (in.) | 6.30 |
| Case Height (in.) | 3.54 |
| Case Weight (lb.) | 5.13 |
| Case Cube (CuFt.) | 0.6057 |
