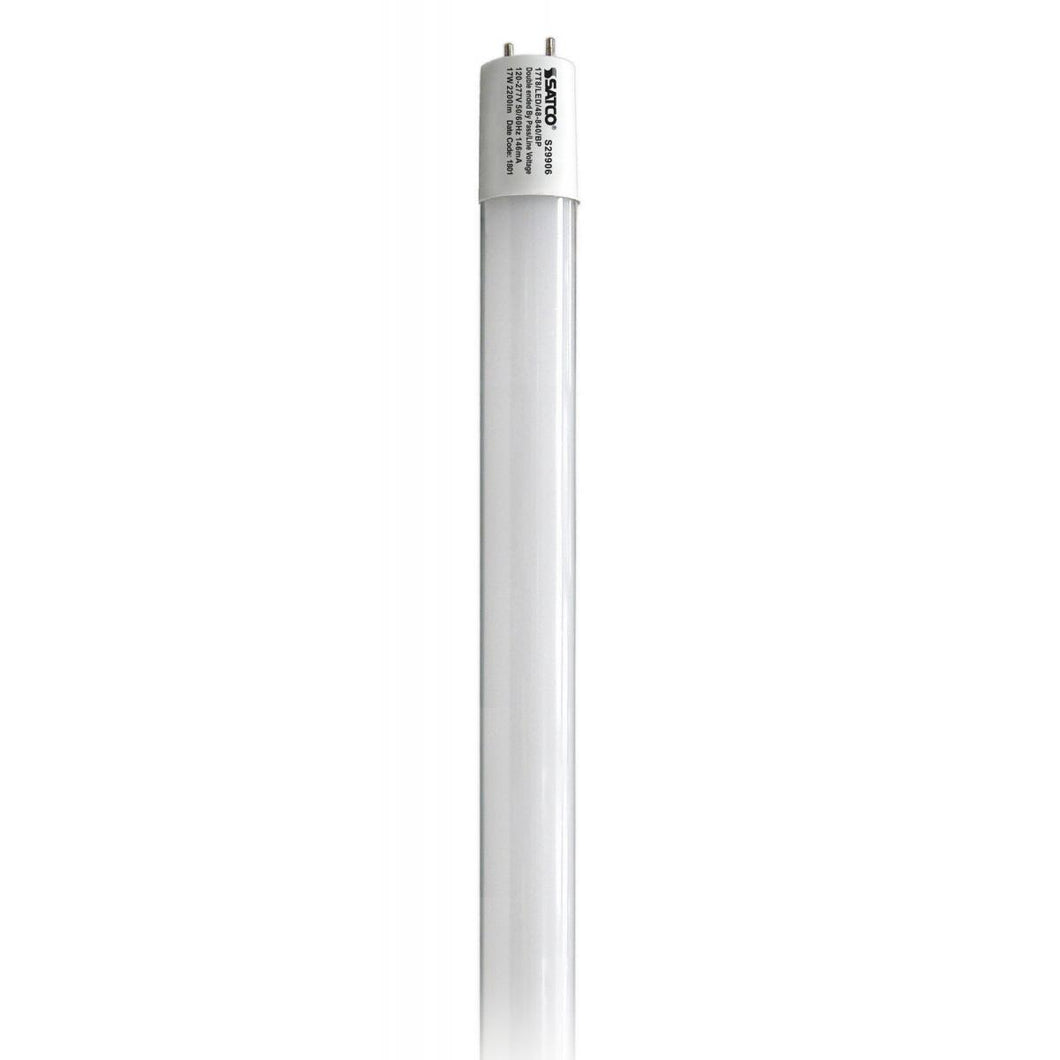

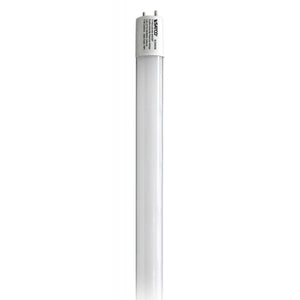

17W T8 LED; 4000K; Medium Bi Pin base; 50000 Average rated hours; 2200 Lumens; Type B; Ballast Bypass; Double Ended Wiring
General
Status | Active |
Watts | 17 |
Fluorescent Equivalent | 32 |
Volts | 120V-277V |
Ballast Type | Type B |
Shape | T8 |
Base | Medium Bi Pin |
ANSI Base | G13 |
Nominal Length | 48 |
Finish | Frosted |
CCT (Kelvin) | 4000 |
Temperature | Cool White |
CRI | 82 |
Lumens | 2200 |
Beam Spread | 210 |
Dimmable | Non-Dimmable |
Hours Rated | 50000 |
Lamp Type | Linear |
Technology | LED |
Electrical
Watts | 17 |
Fluorescent Equivalent | 32 |
Volts | 120V-277V |
Ballast Type | Type B |
CCT (Kelvin) | 4000 |
Temperature | Cool White |
CRI | 82 |
Lumens | 2200 |
Beam Spread | 210 |
Dimmable | Non-Dimmable |
Dimming Type | N/A |
Power Factor | 0.9 |
Hours Rated | 50000 |
Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
MOL | 48 |
MOD | 1 |
Nominal Length | 48 |
Shape | T8 |
Base | Medium Bi Pin |
ANSI Base | G13 |
Finish | Frosted |
Weight (lb.) | 0.44 |
Additional Information
Additional Info | All glass tube |
Tube Guard Use | Approved for use with tube guards |
Installation Notes | Existing wiring to both sockets can remain in place. Will work on both shunted or non-shunted sockets. |
Specification Note | Built-in shock resistant circuit - (not hot until both ends are installed) |
Warranty | 5 Year Limited - T8 LED Bulbs - Ballast Bypass |
Compliance
Safety Listing | cULus Classified |
Location Rating | Damp |
Energy Star | No |
DLC Approved | Yes |
DLC ID | PLHFJDKOU1R3 |
CEC Status | Lawful for sale in California |
RoHS Compliant | Yes |
NSF Approved | Yes - Approved |
Packaging
Each UPC | 045923299063 |
Each Quantity | 1 |
Each Length (in.) | 48.43 |
Each Width (in.) | 1.18 |
Each Height (in.) | 1.18 |
Each Weight (lb.) | 0.52 |
Each Cube (CuFt.) | 0.0378 |
Pack Type | Sleeve |
Inner Quantity | 0 |
Inner Length (in.) | 0.00 |
Inner Width (in.) | 0.00 |
Inner Height (in.) | 0.00 |
Inner Weight (lb.) | 0.00 |
Inner Cube (CuFt.) | 0.0000 |
Case UPC | 10045923299060 |
Case Quantity | 25 |
Case Length (in.) | 48.80 |
Case Width (in.) | 5.90 |
Case Height (in.) | 5.90 |
Case Weight (lb.) | 14.04 |
Case Cube (CuFt.) | 0.9533 |
