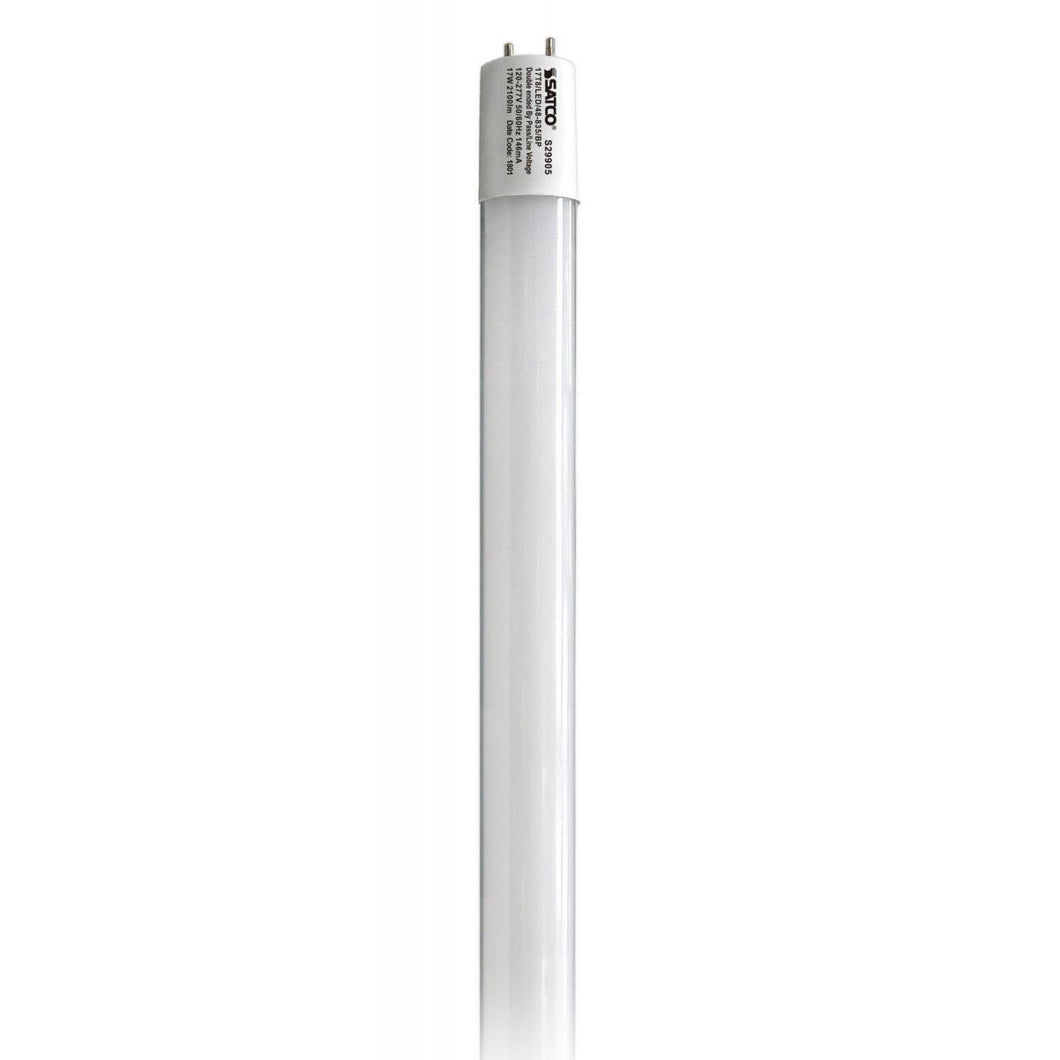

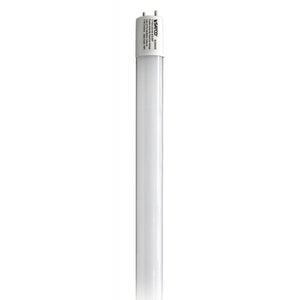

S29905 17T8/LED/48-835/BP 120-277V

S29905 17T8/LED/48-835/BP 120-277V

Regular price
$10.95
Sale price
$10.95
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more

17W T8 LED; 3500K; Medium Bi Pin base; 50000 Average rated hours; 2100 Lumens; Type B; Ballast Bypass; Double Ended Wiring


General
Status Active
Watts 17
Fluorescent Equivalent 32
Volts 120V-277V
Ballast Type Type B
Shape T8
Base Medium Bi Pin
ANSI Base G13
Nominal Length 48
Finish Frosted
CCT (Kelvin) 3500
Temperature Neutral White
CRI 82
Lumens 2100
Beam Spread 210
Dimmable Non-Dimmable
Hours Rated 50000
Lamp Type Linear
Technology LED
Electrical
Watts 17
Fluorescent Equivalent 32
Volts 120V-277V
Ballast Type Type B
CCT (Kelvin) 3500
Temperature Neutral White
CRI 82
Lumens 2100
Beam Spread 210
Dimmable Non-Dimmable
Dimming Type N/A
Power Factor 0.9
Hours Rated 50000
Operating Temperature -20C (-4F) to a maximum of +45C (+113F)
Physical
MOL 48
MOD 1
Nominal Length 48
Shape T8
Base Medium Bi Pin
ANSI Base G13
Finish Frosted
Weight (lb.) 0.44
Additional Information
Additional Info All glass tube
Tube Guard Use Approved for use with tube guards
Installation Notes Existing wiring to both sockets can remain in place. Will work on both shunted or non-shunted sockets.
Specification Note Built-in shock resistant circuit - (not hot until both ends are installed)
Warranty 5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety Listing cULus Classified
Location Rating Damp
Energy Star No
DLC Approved Yes
DLC ID PLP3II9OM9ZI
CEC Status Lawful for sale in California
RoHS Compliant Yes
NSF Approved Yes - Approved
Packaging
Each UPC 045923299056
Each Quantity 1
Each Length (in.) 48.43
Each Width (in.) 1.18
Each Height (in.) 1.18
Each Weight (lb.) 0.52
Each Cube (CuFt.) 0.0378
Pack Type Sleeve
Inner Quantity 0
Inner Length (in.) 0.00
Inner Width (in.) 0.00
Inner Height (in.) 0.00
Inner Weight (lb.) 0.00
Inner Cube (CuFt.) 0.0000
Case UPC 10045923299053
Case Quantity 25
Case Length (in.) 48.80
Case Width (in.) 5.90
Case Height (in.) 5.90
Case Weight (lb.) 14.04
Case Cube (CuFt.) 0.9533
