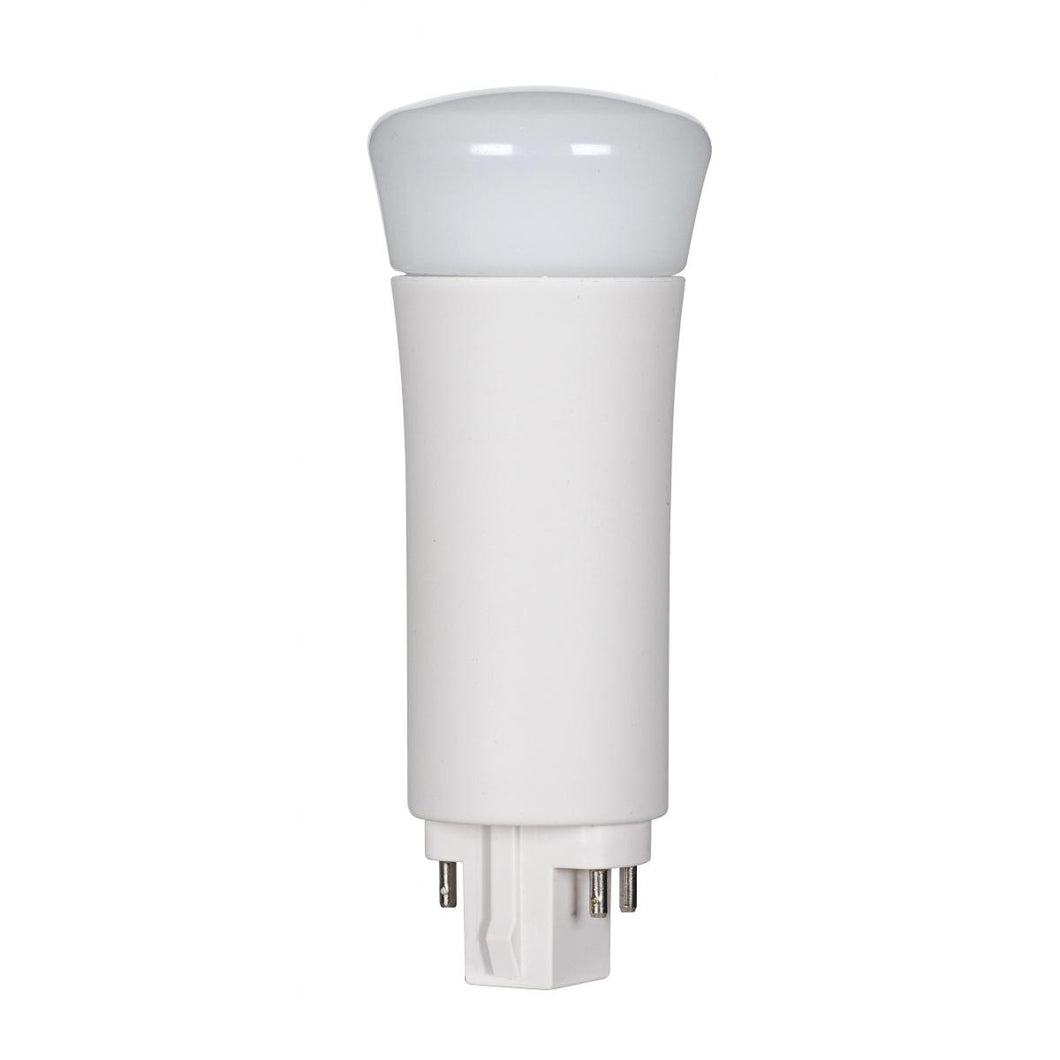

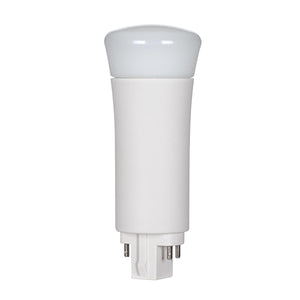

9W LED PL 4-Pin; 3500K; 950 Lumens; G24q base; 50000 Average rated hours; 120 Deg. beam spread; Type A; Ballast dependent
General
Status | Active |
Watts | 9 |
Fluorescent Equivalent | 18, 26, 32, 42 |
Ballast Type | Type A |
Shape | PL |
Base | 4-Pin |
ANSI Base | G24q |
Finish | Frosted |
CCT (Kelvin) | 3500 |
Temperature | Neutral White |
CRI | 82 |
Lumens | 950 |
Beam Spread | 120 |
Dimmable | Non-Dimmable |
Hours Rated | 50000 |
Lamp Type | PL |
Burning Position | Vertical Operation |
Technology | LED |
Electrical
Watts | 9 |
Fluorescent Equivalent | 18, 26, 32, 42 |
Ballasting Requirements | Ballast required |
Ballast Type | Type A |
Working Voltage | Ballast dependent |
CCT (Kelvin) | 3500 |
Temperature | Neutral White |
CRI | 82 |
Lumens | 950 |
Beam Spread | 120 |
Dimmable | Non-Dimmable |
Dimming Type | N/A |
Power Factor | 0.9 |
Hours Rated | 50000 |
THD | 25% (+/-5%) |
Burning Position | Vertical Operation |
Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
MOL | 4.69 |
MOD | 1.91 |
Shape | PL |
Base | 4-Pin |
ANSI Base | G24q |
Finish | Frosted |
Housing Color | White |
Additional Information
Enclosure Rating | Enclosed Rated Lamp |
Warranty | 5 Year Limited - 10 hr per day |
Compliance
Safety Listing | cULus |
Location Rating | Damp |
Energy Star | No |
DLC Approved | Yes |
DLC ID | PLXXOCWK4Z81 |
CEC Status | Lawful for sale in California |
RoHS Compliant | Yes |
SDS Sheet | LED Lamp |
Packaging
Each UPC | 045923298592 |
Each Quantity | 1 |
Each Length (in.) | 2.00 |
Each Width (in.) | 2.00 |
Each Height (in.) | 4.80 |
Each Weight (lb.) | 0.29 |
Each Cube (CuFt.) | 0.0108 |
Pack Type | Box |
Inner UPC | 20045923298596 |
Inner Quantity | 10 |
Inner Length (in.) | 10.00 |
Inner Width (in.) | 4.17 |
Inner Height (in.) | 5.12 |
Inner Weight (lb.) | 2.70 |
Inner Cube (CuFt.) | 0.1198 |
Case UPC | 10045923298599 |
Case Quantity | 50 |
Case Length (in.) | 11.00 |
Case Width (in.) | 10.60 |
Case Height (in.) | 10.60 |
Case Weight (lb.) | 15.30 |
Case Cube (CuFt.) | 0.6936 |
