Energy Efficient Lighting

>
S29851 9WPLH/LED/835/DR/4P

S29851 9WPLH/LED/835/DR/4P

Regular price
$12.95
Sale price
$12.95
Tax included. Shipping calculated at checkout.

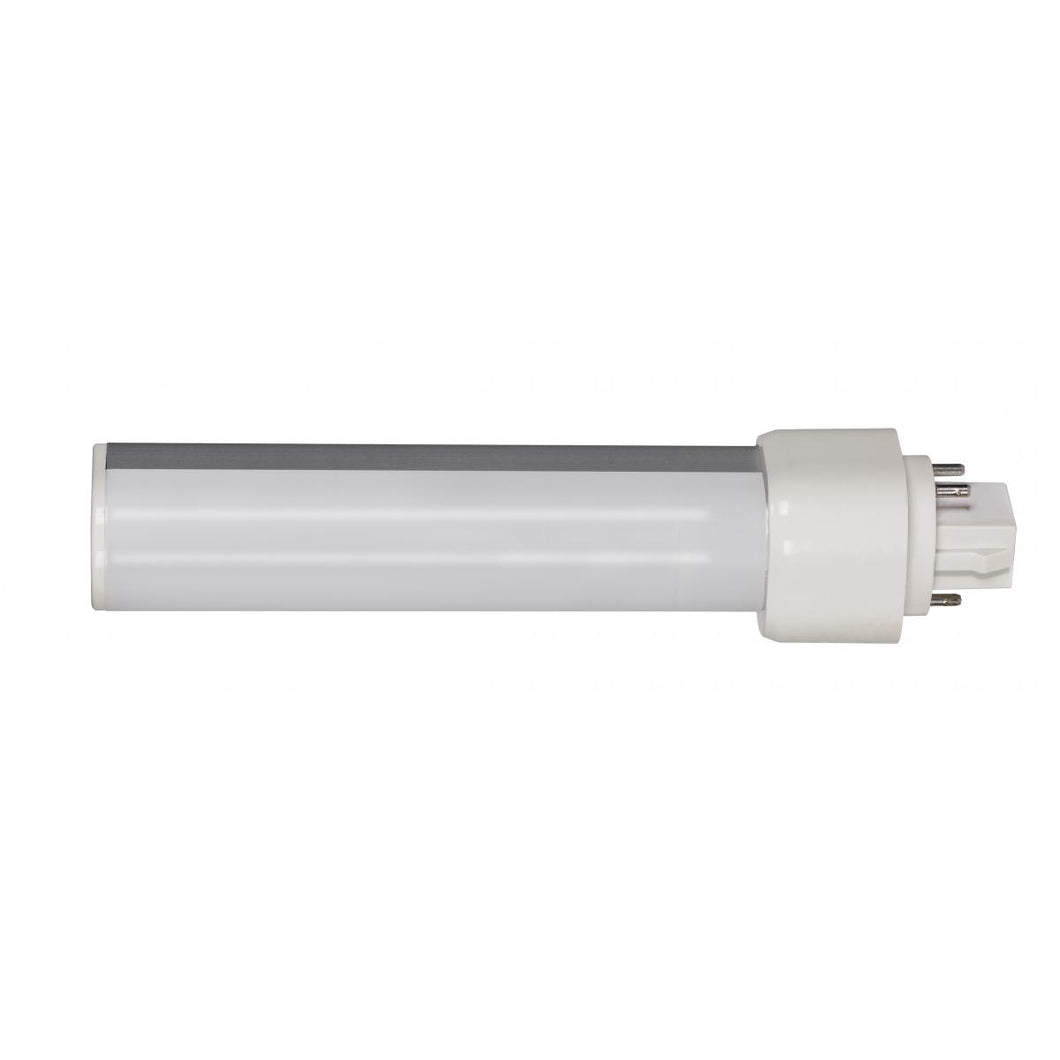

9W LED PL 4-Pin; 3500K; 950 Lumens; G24q base; 50000 Average rated hours; 120 Deg. beam spread; Type A; Ballast dependent



General
Status Active
Watts 9
Fluorescent Equivalent 26, 32, 42
Ballast Type Type A
Shape PL
Base 4-Pin
ANSI Base G24q
Finish Frosted
CCT (Kelvin) 3500
Temperature Neutral White
CRI 82
Lumens 950
Beam Spread 120
Dimmable Non-Dimmable
Hours Rated 50000
Lamp Type PL
Burning Position Horizontal Operation
Technology LED
Electrical
Watts 9
Fluorescent Equivalent 26, 32, 42
Ballasting Requirements Ballast required
Ballast Type Type A
Working Voltage Ballast dependent
CCT (Kelvin) 3500
Temperature Neutral White
CRI 82
Lumens 950
Beam Spread 120
Dimmable Non-Dimmable
Dimming Type N/A
Power Factor 0.9
Hours Rated 50000
THD 25% (+/-5%)
Burning Position Horizontal Operation
Operating Temperature -20C (-4F) to a maximum of +45C (+113F)
Physical
MOL 6.63
MOD 1.09
Shape PL
Base 4-Pin
ANSI Base G24q
Finish Frosted
Housing Color White
Additional Information
Enclosure Rating Enclosed Rated Lamp
Warranty 5 Year Limited - 10 hr per day
Compliance
Safety Listing cULus
Location Rating Damp
Energy Star No
DLC Approved Yes
DLC ID PL8YPZRKJRQ3
CEC Status Lawful for sale in California
RoHS Compliant Yes
SDS Sheet LED Lamp
Packaging
Each UPC 045923298516
Each Quantity 1
Each Length (in.) 1.50
Each Width (in.) 1.50
Each Height (in.) 6.80
Each Weight (lb.) 0.22
Each Cube (CuFt.) 0.0086
Pack Type Box
Inner UPC 20045923298510
Inner Quantity 10
Inner Length (in.) 8.00
Inner Width (in.) 3.30
Inner Height (in.) 7.09
Inner Weight (lb.) 2.06
Inner Cube (CuFt.) 0.1050
Case UPC 10045923298513
Case Quantity 50
Case Length (in.) 14.50
Case Width (in.) 8.60
Case Height (in.) 9.00
Case Weight (lb.) 12.00
Case Cube (CuFt.) 0.6298
