S29769 75W/LED/HID/MB/5000K/100-277V

S29769 75W/LED/HID/MB/5000K/100-277V

Regular price
$137.97
Sale price
$137.97
Tax included. Shipping calculated at checkout.

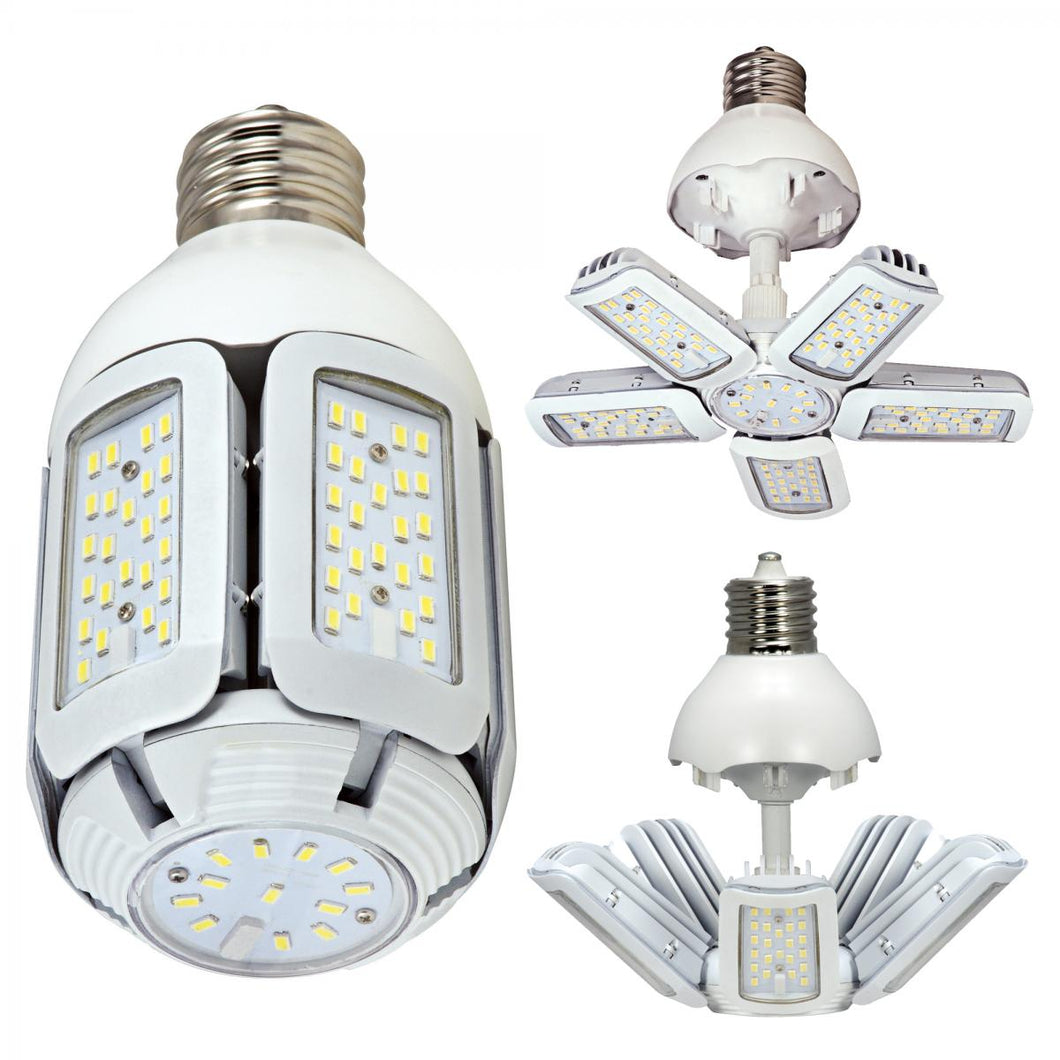

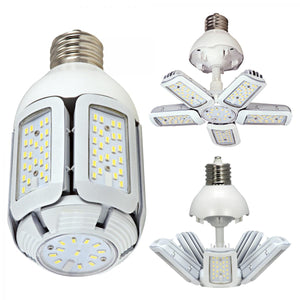

75W LED HID Replacement; 5000K; Mogul Extended base; Adjustable beam angle; 100-277V



General
Status Active
Watts 75
Incandescent Equivalent 750
Fluorescent Equivalent 105
HID Equivalent 400
Volts 100V-277V
Shape Corncob
Base Mogul Extended
ANSI Base EX39
Finish Clear
CCT (Kelvin) 5000
Temperature Natural Light
CRI 80+
Lumens 9800
Beam Spread 360
Dimmable Non-Dimmable
Hours Rated 50000
Lamp Type Corncob
Technology LED
Min Compartment Size Length 8.27 in. Width 9.25 in. Depth 9.25 in.
Ballasting Requirements Direct wire range voltage 100-277V
Electrical
Watts 75
Incandescent Equivalent 750
Fluorescent Equivalent 105
HID Equivalent 400
Volts 100V-277V
Ballasting Requirements Direct wire range voltage 100-277V
Operating Frequency 50/60 Hz
CCT (Kelvin) 5000
Temperature Natural Light
CRI 80+
Lumens 9800
Beam Spread 360
Dimmable Non-Dimmable
Dimming Type N/A
Power Factor >0.9
Hours Rated 50000
Burning Position Up or Down Operation Only
Surge Protection Built-in surge protection - 3KV
Operating Temperature -25C (-13F) to a maximum of +45C (+113F)
Physical
MOL 8.63
MOD 4.19
Shape Corncob
Base Mogul Extended
ANSI Base EX39
Finish Clear
Housing Color White
Weight (lb.) 2.4
Additional Information
Additional Info Width 360 deg 4.2 in.; Width 270 deg 9.3 in.; Width 180 deg 10.9 in. Approved for totally enclosed fixtures; Base up or base down operation; For outdoor & indoor use; Emits no UV light / Contains no Mercury (Hg)
Enclosure Rating Enclosed Rated Lamp
Min Compartment Size Length 8.27 in. Width 9.25 in. Depth 9.25 in.
Rated For Enclosed Fixture Yes
IP Rating IP65
Warranty 5 Year Limited - Hi-Pro
Compliance
Safety Listing cULus
Location Rating Wet
Energy Star No
DLC Approved Yes
DLC ID PL4HH8JPTHBS
CEC Status Lawful for sale in California
RoHS Compliant Yes
SDS Sheet LED Lamp
Packaging
Each UPC 045923297694
Each Quantity 1
Each Length (in.) 5.39
Each Width (in.) 5.39
Each Height (in.) 9.84
Each Weight (lb.) 3.11
Each Cube (CuFt.) 0.1604
Pack Type Box
Inner UPC 20045923297698
Inner Quantity 6
Inner Length (in.) 16.93
Inner Width (in.) 11.61
Inner Height (in.) 10.83
Inner Weight (lb.) 20.06
Inner Cube (CuFt.) 1.1946
Case UPC 10045923297691
Case Quantity 12
Case Length (in.) 24.20
Case Width (in.) 17.72
Case Height (in.) 11.81
Case Weight (lb.) 41.76
Case Cube (CuFt.) 2.8420
