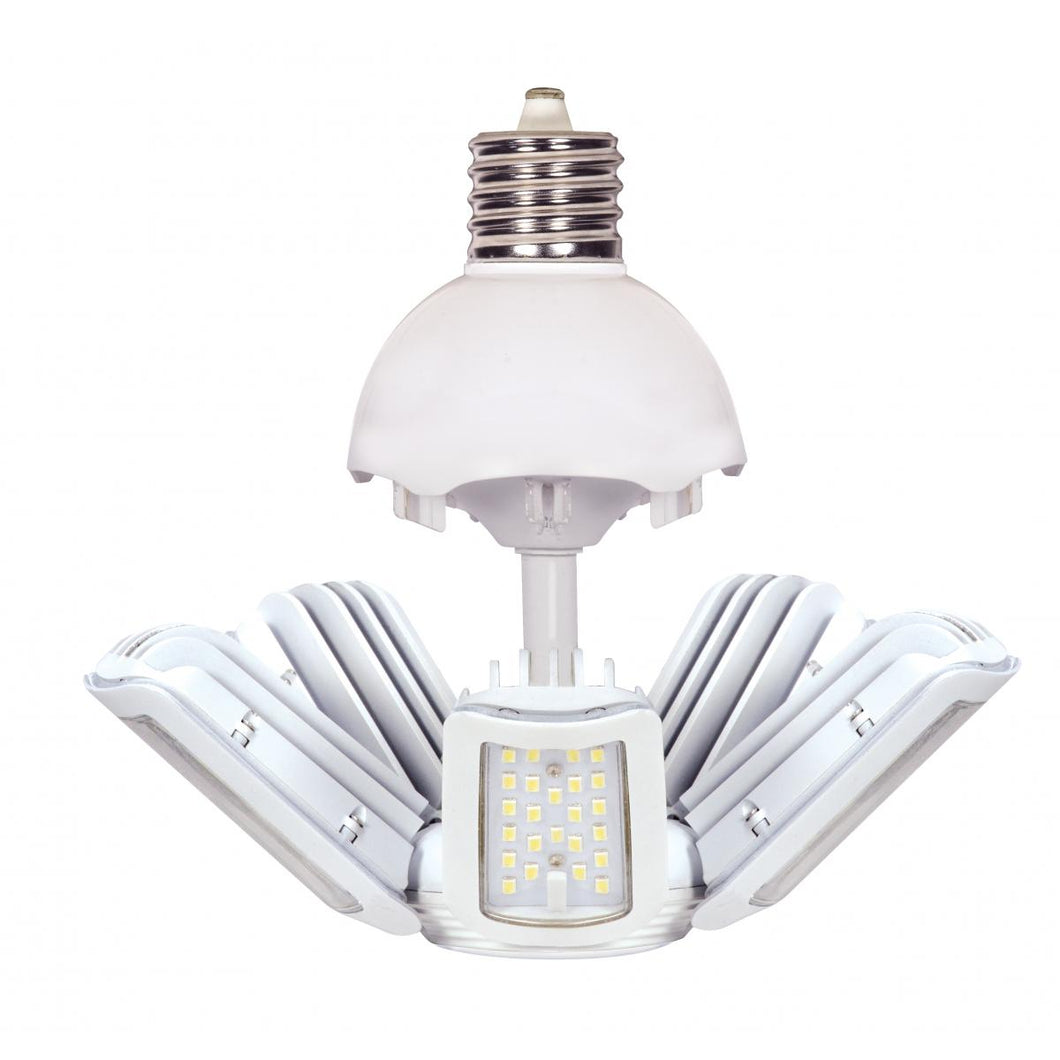

90W LED HID Replacement; 5000K; Mogul Extended base; Adjustable beam angle; 100-277V
General
| Status | Active |
| Watts | 90 |
| Volts | 100V-277V |
| Shape | Corncob |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | Clear |
| CCT (Kelvin) | 5000 |
| Temperature | Natural Light |
| CRI | 80+ |
| Lumens | 11700 |
| Beam Spread | 360 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | Corncob |
| Technology | LED |
| Min Compartment Size | Length 22 in. Width 17 in. Depth 17 in. |
| Ballasting Requirements | Direct wire range voltage 100-277V |
Electrical
| Watts | 90 |
| Volts | 100V-277V |
| Ballasting Requirements | Direct wire range voltage 100-277V |
| Operating Frequency | 50/60 Hz |
| CCT (Kelvin) | 5000 |
| Temperature | Natural Light |
| CRI | 80+ |
| Lumens | 11700 |
| Beam Spread | 360 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Power Factor | >0.9 |
| Hours Rated | 50000 |
| Burning Position | Up or Down Operation Only |
| Surge Protection | Built-in surge protection - 4KV |
| Operating Temperature | -25C (-13F) to a maximum of +45C (+113F) |
Physical
| MOL | 10.03 |
| MOD | 4.94 |
| Shape | Corncob |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | Clear |
| Housing Color | White |
| Weight (lb.) | 3.48 |
Additional Information
| Additional Info | Width 360 deg 4.91 in.; Width 270 deg 10.87 in.; Width 180 deg 12.60 in. Approved for totally enclosed fixtures; Base up or base down operation; For outdoor & indoor use; Emits no UV light / Contains no Mercury (Hg) |
| Enclosure Rating | Enclosed Rated Lamp |
| Min Compartment Size | Length 22 in. Width 17 in. Depth 17 in. |
| Rated For Enclosed Fixture | Yes |
| IP Rating | IP65 |
| Warranty | 5 Year Limited - Hi-Pro |
Compliance
| Safety Listing | cULus |
| Location Rating | Wet |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PLJB0QT8YWPG |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923296796 |
| Each Quantity | 1 |
| Each Length (in.) | 6.50 |
| Each Width (in.) | 6.50 |
| Each Height (in.) | 11.42 |
| Each Weight (lb.) | 4.47 |
| Each Cube (CuFt.) | 0.2708 |
| Pack Type | Box |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923296793 |
| Case Quantity | 6 |
| Case Length (in.) | 20.28 |
| Case Width (in.) | 13.58 |
| Case Height (in.) | 12.20 |
| Case Weight (lb.) | 29.10 |
| Case Cube (CuFt.) | 1.8855 |
