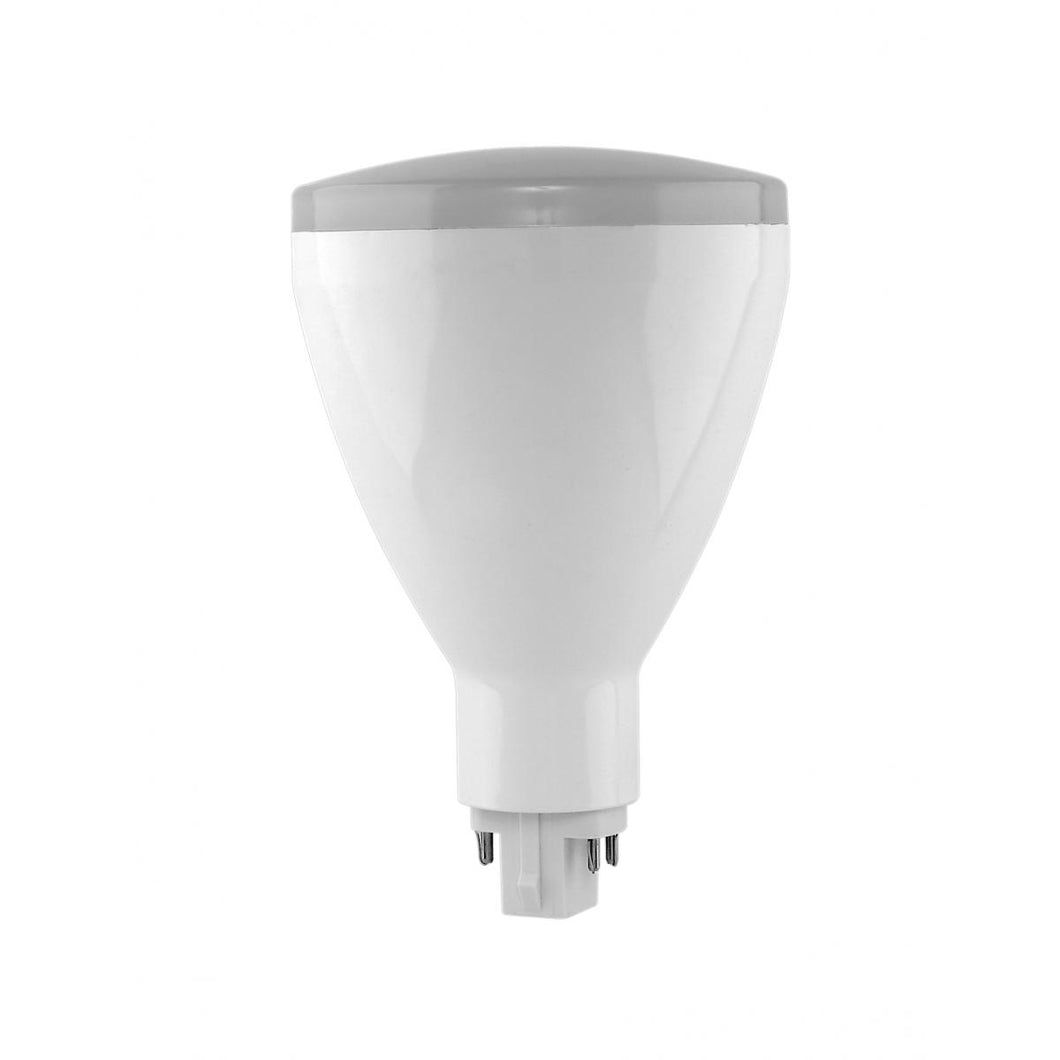

16W LED PL 4-Pin; 5000K; 1850 Lumens; G24q base; 50000 Average rated hours; Vertical; Type A; Ballast dependent
General
Status | Active |
Watts | 16 |
Fluorescent Equivalent | 42 |
Volts | 120V-277V |
Ballast Type | Type A |
Shape | PL |
Base | 4-Pin |
ANSI Base | G24q |
Finish | Frosted White |
CCT (Kelvin) | 5000 |
Temperature | Natural Light |
CRI | 82 |
Lumens | 1850 |
Beam Spread | 110 |
Dimmable | Non-Dimmable |
Hours Rated | 50000 |
Lamp Type | PL |
Burning Position | Vertical Operation |
Technology | LED |
Electrical
Watts | 16 |
Fluorescent Equivalent | 42 |
Volts | 120V-277V |
Ballasting Requirements | Ballast required |
Ballast Type | Type A |
CCT (Kelvin) | 5000 |
Temperature | Natural Light |
CRI | 82 |
Lumens | 1850 |
Beam Spread | 110 |
Dimmable | Non-Dimmable |
Dimming Type | N/A |
Power Factor | 0.9 |
Hours Rated | 50000 |
Burning Position | Vertical Operation |
Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
MOL | 5.19 |
MOD | 3.75 |
Shape | PL |
Base | 4-Pin |
ANSI Base | G24q |
Finish | Frosted White |
Housing Color | White |
Weight (lb.) | 0.35 |
Additional Information
Enclosure Rating | Enclosed Rated Lamp |
Warranty | 5 Year Limited - 10 hr per day |
Compliance
Safety Listing | cULus |
Location Rating | Damp |
Energy Star | No |
DLC Approved | Yes |
DLC ID | PL9E574BZGHJ |
CEC Status | Lawful for sale in California |
RoHS Compliant | Yes |
SDS Sheet | LED Lamp |
Packaging
Each UPC | 045923224072 |
Each Quantity | 1 |
Each Length (in.) | 3.86 |
Each Width (in.) | 3.86 |
Each Height (in.) | 6.30 |
Each Weight (lb.) | 0.33 |
Each Cube (CuFt.) | 0.0527 |
Pack Type | Box |
Inner UPC | 20045923224076 |
Inner Quantity | 10 |
Inner Length (in.) | 20.08 |
Inner Width (in.) | 8.27 |
Inner Height (in.) | 6.70 |
Inner Weight (lb.) | 5.50 |
Inner Cube (CuFt.) | 0.6244 |
Case UPC | 10045923224079 |
Case Quantity | 20 |
Case Length (in.) | 20.86 |
Case Width (in.) | 8.86 |
Case Height (in.) | 14.17 |
Case Weight (lb.) | 11.68 |
Case Cube (CuFt.) | 1.4696 |
