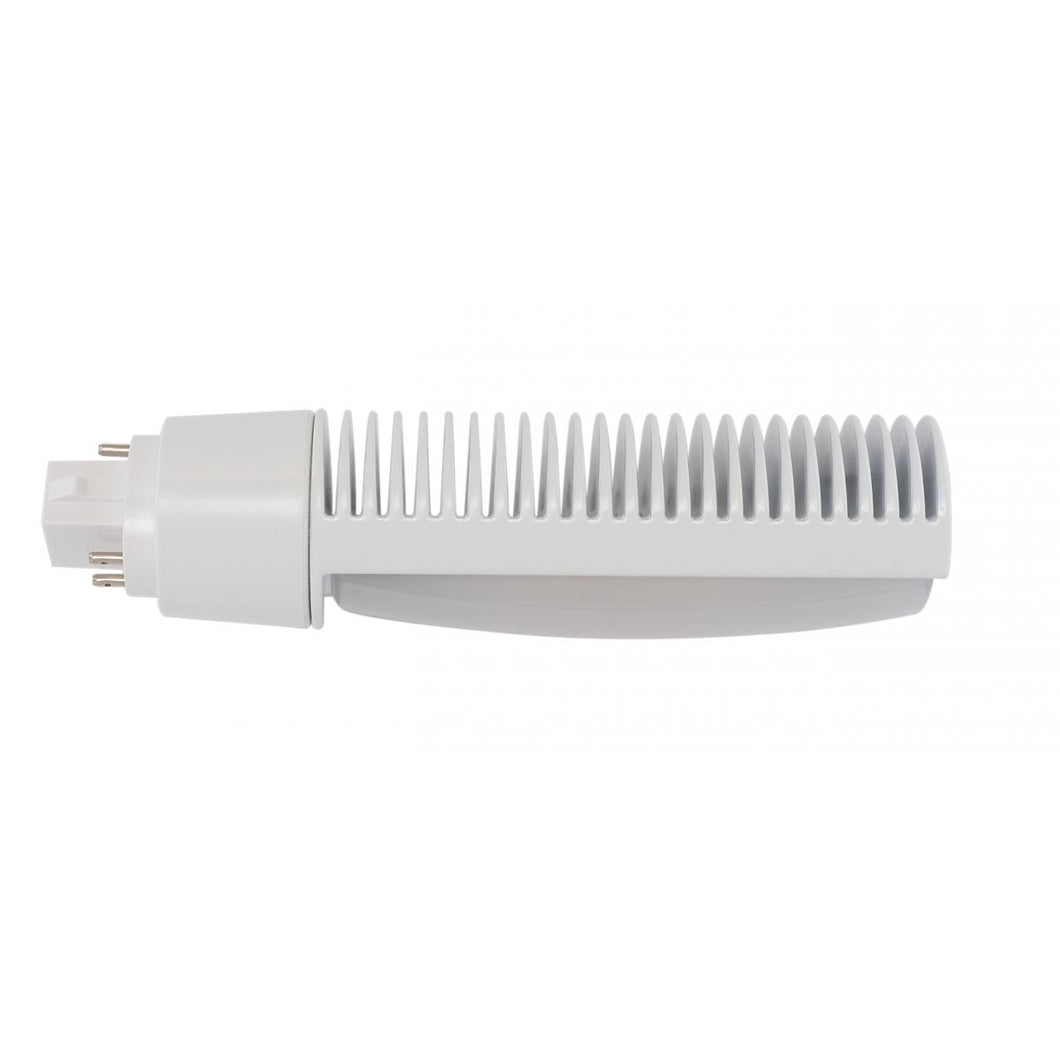

16W LED PL 4-Pin; 5000K; 1850 Lumens; G24q base; 50000 Average rated hours; Horizontal; Type A; Ballast dependent
General
| Status | Active |
| Watts | 16 |
| Fluorescent Equivalent | 42 |
| Volts | 120V-277V |
| Ballast Type | Type A |
| Shape | PL |
| Base | 4-Pin |
| ANSI Base | G24q |
| Finish | Frosted White |
| CCT (Kelvin) | 5000 |
| Temperature | Natural Light |
| CRI | 82 |
| Lumens | 1850 |
| Beam Spread | 100 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | PL |
| Burning Position | Horizontal Operation |
| Technology | LED |
Electrical
| Watts | 16 |
| Fluorescent Equivalent | 42 |
| Volts | 120V-277V |
| Ballasting Requirements | Ballast required |
| Ballast Type | Type A |
| CCT (Kelvin) | 5000 |
| Temperature | Natural Light |
| CRI | 82 |
| Lumens | 1850 |
| Beam Spread | 100 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Power Factor | 0.9 |
| Hours Rated | 50000 |
| Burning Position | Horizontal Operation |
| Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
| MOL | 6.44 |
| MOD | 1.69 |
| Shape | PL |
| Base | 4-Pin |
| ANSI Base | G24q |
| Finish | Frosted White |
| Housing Color | White |
| Weight (lb.) | 0.43 |
Additional Information
| Enclosure Rating | Enclosed Rated Lamp |
| Warranty | 5 Year Limited - 10 hr per day |
Compliance
| Safety Listing | cULus |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PLRIXE3U0JQ0 |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923224034 |
| Each Quantity | 1 |
| Each Length (in.) | 1.77 |
| Each Width (in.) | 1.77 |
| Each Height (in.) | 6.70 |
| Each Weight (lb.) | 0.42 |
| Each Cube (CuFt.) | 0.0118 |
| Pack Type | Box |
| Inner UPC | 20045923224038 |
| Inner Quantity | 10 |
| Inner Length (in.) | 9.84 |
| Inner Width (in.) | 4.13 |
| Inner Height (in.) | 7.28 |
| Inner Weight (lb.) | 4.82 |
| Inner Cube (CuFt.) | 0.1660 |
| Case UPC | 10045923224031 |
| Case Quantity | 20 |
| Case Length (in.) | 10.43 |
| Case Width (in.) | 8.46 |
| Case Height (in.) | 7.80 |
| Case Weight (lb.) | 9.92 |
| Case Cube (CuFt.) | 0.3862 |
