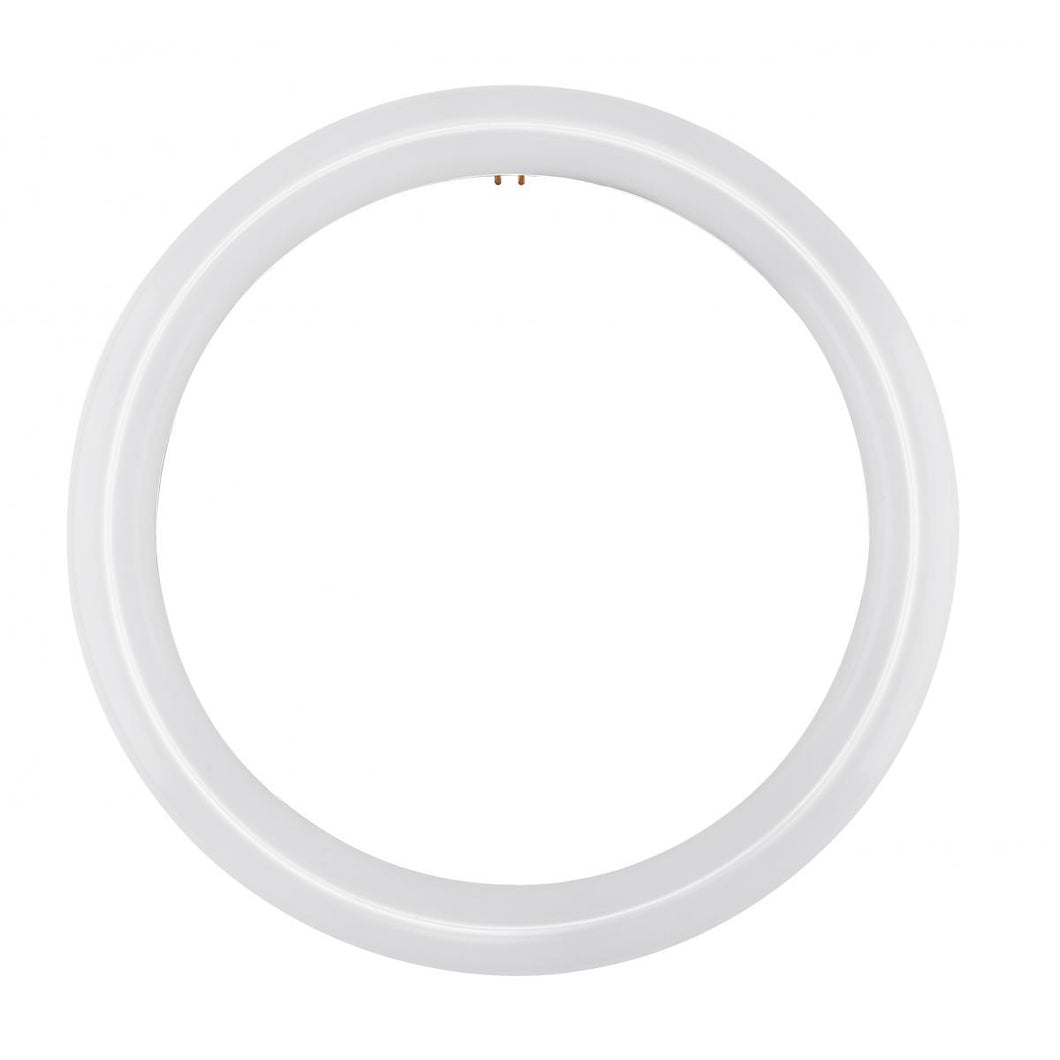

LED Circline; 16W; T9; 6500K; G10Q Base; 120-277V; Type B; Ballast Bypass
General
| Status | Active |
| Watts | 16 |
| Fluorescent Equivalent | 32 |
| Volts | 120V-277V |
| Ballast Type | Type B |
| Shape | T9 |
| Base | 4-Pin |
| ANSI Base | G10q |
| Finish | Frosted |
| CCT (Kelvin) | 6500 |
| Temperature | Daylight |
| CRI | 80 |
| Lumens | 1760 |
| Beam Spread | 135 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | Circline |
| Technology | LED |
Electrical
| Watts | 16 |
| Fluorescent Equivalent | 32 |
| Volts | 120V-277V |
| Ballasting Requirements | Ballast Bypass |
| Ballast Type | Type B |
| Operating Frequency | 50/60 Hz |
| CCT (Kelvin) | 6500 |
| Temperature | Daylight |
| CRI | 80 |
| Lumens | 1760 |
| Beam Spread | 135 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Power Factor | 0.9 |
| Hours Rated | 50000 |
| THD | < 25 |
| Operating Temperature | -25C (-13F) to a maximum of +45C (+113F) |
Physical
| MOL | 12 |
| MOD | 12 |
| Shape | T9 |
| Base | 4-Pin |
| ANSI Base | G10q |
| Finish | Frosted |
| Housing Color | White |
| Weight (lb.) | 0.38 |
Additional Information
| Additional Info | Replaces 32W fluorescent Circlines |
| Warranty | 5 Year Limited - T8 LED Bulbs - Ballast Bypass |
Compliance
| Safety Listing | cETLus |
| Location Rating | Damp |
| Energy Star | No |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923165054 |
| Each Quantity | 1 |
| Each Length (in.) | 12.00 |
| Each Width (in.) | 12.80 |
| Each Height (in.) | 13.00 |
| Each Weight (lb.) | 0.38 |
| Each Cube (CuFt.) | 1.1205 |
| Pack Type | Box |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923165051 |
| Case Quantity | 12 |
| Case Length (in.) | 18.50 |
| Case Width (in.) | 12.80 |
| Case Height (in.) | 13.20 |
| Case Weight (lb.) | 4.56 |
| Case Cube (CuFt.) | 1.7541 |
