S16426 48T8/LED/HO-SIGN/120-840/BP

S16426 48T8/LED/HO-SIGN/120-840/BP

Regular price
$60.95
Sale price
$60.95
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more

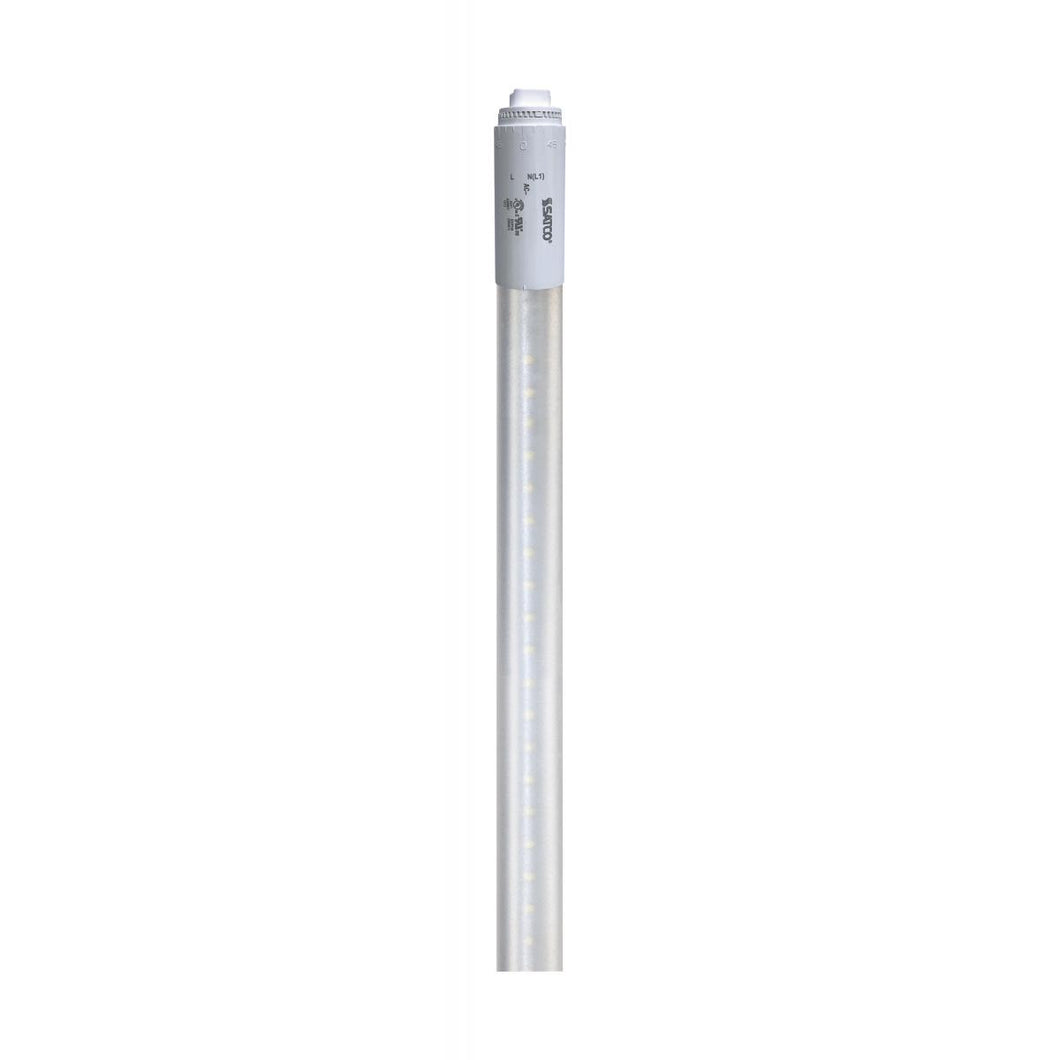

48W T8 LED; 4000K; 6700 Lumens; 120-277V; Double Side LED; Type B; Ballast Bypass; Single Ended Wiring



General
Status Active
Watts 48
Fluorescent Equivalent 135
Volts 120V-277V
Ballast Type Type B
Shape T8
Base Recessed Double Contact HO/VHO
ANSI Base R17d
Nominal Length 120
Finish Frosted
CCT (Kelvin) 4000
Temperature Cool White
CRI 83
Lumens 6700
Beam Spread 330
Dimmable Non-Dimmable
Hours Rated 50000
Lamp Type Linear
Technology LED
Electrical
Watts 48
Fluorescent Equivalent 135
Volts 120V-277V
Ballasting Requirements Ballast Bypass
Ballast Type Type B
Operating Frequency 50/60 Hz
CCT (Kelvin) 4000
Temperature Cool White
CRI 83
Lumens 6700
Beam Spread 330
Dimmable Non-Dimmable
Dimming Type N/A
Power Factor 0.9
Hours Rated 50000
Operating Temperature -30C (-22F) to a maximum of +45C (+113F)
Physical
MOL 117
MOD 1
Nominal Length 120
Shape T8
Base Recessed Double Contact HO/VHO
ANSI Base R17d
Finish Frosted
Lens Finish Clear
Lens Material Nano
Housing Color White
Weight (lb.) 2.22
Additional Information
Tube Guard Use Not Approved
Warranty 5 Year Limited - T8 LED Bulbs - Ballast Bypass - Outdoor Temperature Rated
Compliance
Safety Listing cULus Classified
Location Rating Damp
Energy Star No
CEC Status Lawful for sale in California
RoHS Compliant Yes
FCC Compliant Yes
NSF Approved Yes - Approved
Packaging
Each UPC 045923164262
Each Quantity 1
Each Length (in.) 120.00
Each Width (in.) 1.10
Each Height (in.) 1.10
Each Weight (lb.) 2.38
Each Cube (CuFt.) 0.0815
Pack Type Sleeve
Inner Quantity 0
Inner Length (in.) 0.00
Inner Width (in.) 0.00
Inner Height (in.) 0.00
Inner Weight (lb.) 0.00
Inner Cube (CuFt.) 0.0000
Case UPC 10045923164269
Case Quantity 10
Case Length (in.) 119.80
Case Width (in.) 7.87
Case Height (in.) 4.92
Case Weight (lb.) 25.35
Case Cube (CuFt.) 2.6031
