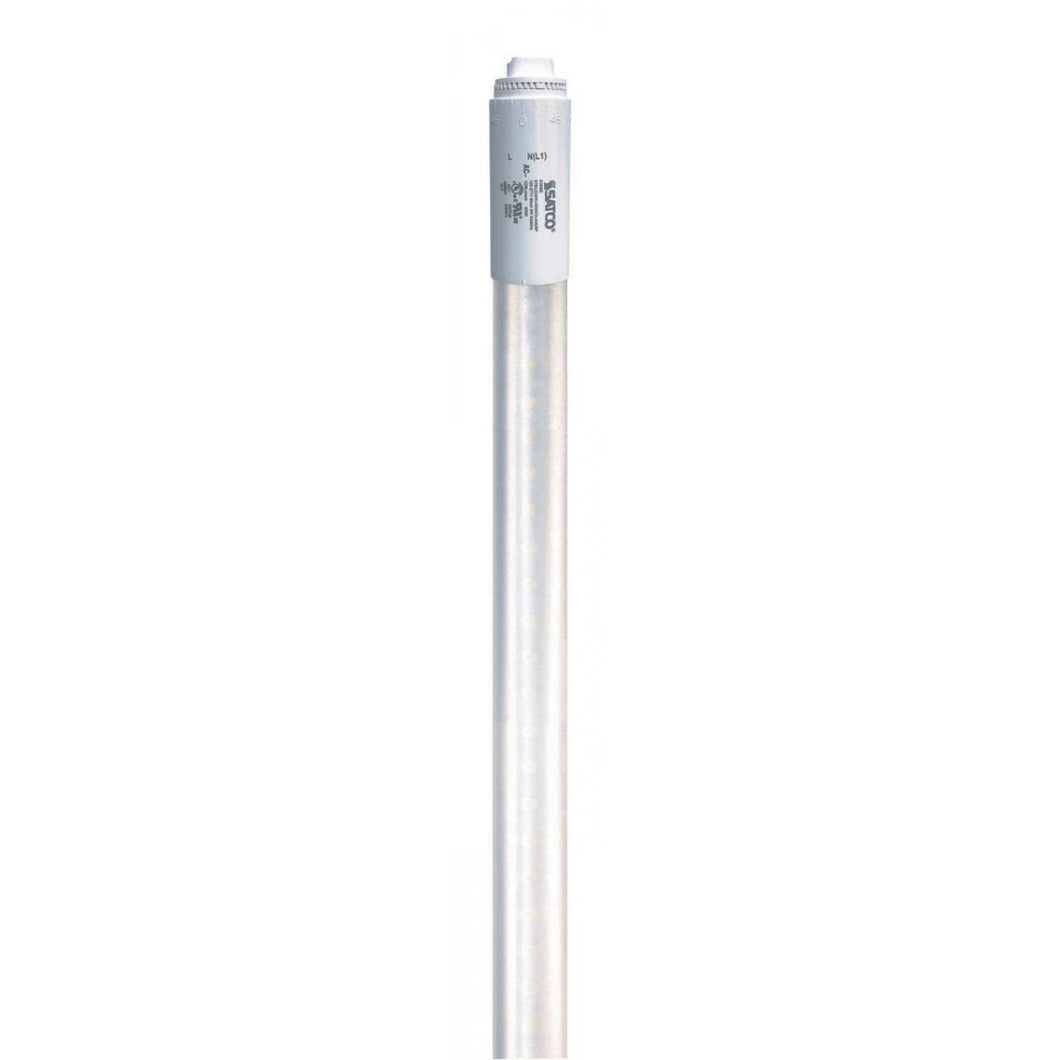

36W T8 LED; 4000K; 5000 Lumens; 120-277V; Type B; Single Ended; Ballast Bypass
General
| Status | Active |
| Watts | 36 |
| Fluorescent Equivalent | 113 |
| Volts | 120V-277V |
| Ballast Type | Type B |
| Shape | T8 |
| Base | Recessed Double Contact HO/VHO |
| ANSI Base | R17d |
| Nominal Length | 96 |
| Finish | Frosted |
| CCT (Kelvin) | 4000 |
| Temperature | Cool White |
| CRI | 83 |
| Lumens | 5000 |
| Beam Spread | 330 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | Linear |
| Technology | LED |
Electrical
| Watts | 36 |
| Fluorescent Equivalent | 113 |
| Volts | 120V-277V |
| Ballasting Requirements | Ballast Bypass |
| Ballast Type | Type B |
| Operating Frequency | 50/60 Hz |
| CCT (Kelvin) | 4000 |
| Temperature | Cool White |
| CRI | 83 |
| Lumens | 5000 |
| Beam Spread | 330 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Power Factor | 0.9 |
| Hours Rated | 50000 |
| Operating Temperature | -30C (-22F) to a maximum of +45C (+113F) |
Physical
| MOL | 93.88 |
| MOD | 1 |
| Nominal Length | 96 |
| Shape | T8 |
| Base | Recessed Double Contact HO/VHO |
| ANSI Base | R17d |
| Finish | Frosted |
Additional Information
| Installation Notes | No ballast or external driver required; Direct wire 120-277V line voltage; Single ended wiring |
| Warranty | 5 Year Limited - T8 LED Bulbs - Ballast Bypass - Outdoor Temperature Rated |
Compliance
| Safety Listing | cULus Classified |
| Location Rating | Damp |
| Energy Star | No |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| NSF Approved | Yes - Approved |
Packaging
| Each UPC | 045923164101 |
| Each Quantity | 1 |
| Each Length (in.) | 95.47 |
| Each Width (in.) | 1.00 |
| Each Height (in.) | 1.00 |
| Each Weight (lb.) | 2.65 |
| Each Cube (CuFt.) | 0.0536 |
| Pack Type | Sleeve |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923164108 |
| Case Quantity | 10 |
| Case Length (in.) | 96.00 |
| Case Width (in.) | 7.56 |
| Case Height (in.) | 4.92 |
| Case Weight (lb.) | 26.50 |
| Case Cube (CuFt.) | 2.0038 |
