S16402 - Trinity ETC

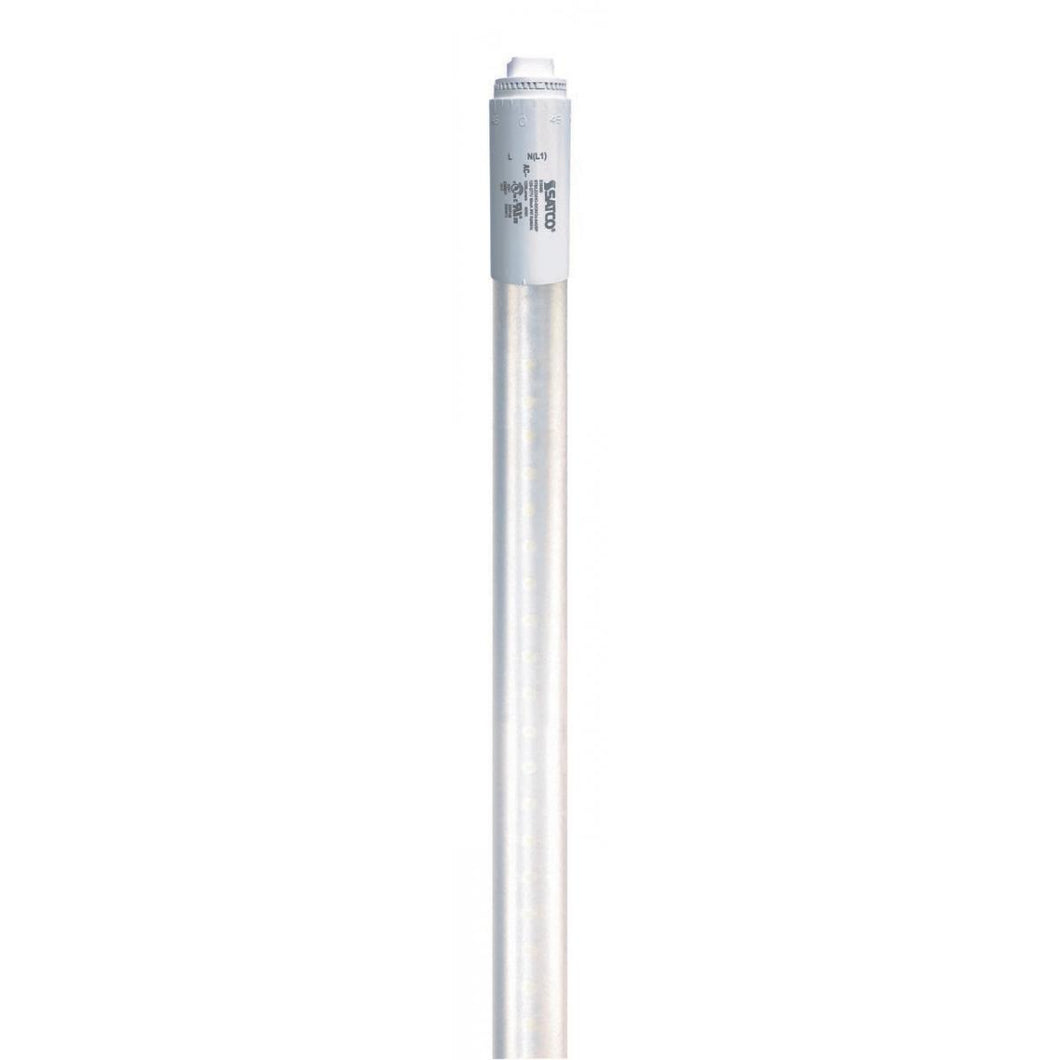

S16402 12T8/LED/HO-SIGN/36-840/BP

Regular price
$21.95
Sale price
$21.95
Tax included. Shipping calculated at checkout.

12W T8 LED; 4000K; 1500 Lumens; 120-277V; Type B; Single Ended; Ballast Bypass



General
Status Active
Watts 12
Fluorescent Equivalent 50
Volts 120V-277V
Ballast Type Type B
Shape T8
Base Recessed Double Contact HO/VHO
ANSI Base R17d
Nominal Length 36
Finish Frosted
CCT (Kelvin) 4000
Temperature Cool White
CRI 83
Lumens 1500
Beam Spread 330
Dimmable Non-Dimmable
Hours Rated 50000
Lamp Type Linear
Technology LED
Electrical
Watts 12
Fluorescent Equivalent 50
Volts 120V-277V
Ballasting Requirements Ballast Bypass
Ballast Type Type B
Operating Frequency 50/60 Hz
CCT (Kelvin) 4000
Temperature Cool White
CRI 83
Lumens 1500
Beam Spread 330
Dimmable Non-Dimmable
Dimming Type N/A
Power Factor 0.9
Hours Rated 50000
Operating Temperature -30C (-22F) to a maximum of +45C (+113F)
Physical
MOL 33.88
MOD 1
Nominal Length 36
Shape T8
Base Recessed Double Contact HO/VHO
ANSI Base R17d
Finish Frosted
Additional Information
Installation Notes No ballast or external driver required; Direct wire 120-277V line voltage; Single ended wiring
Warranty 5 Year Limited - T8 LED Bulbs - Ballast Bypass - Outdoor Temperature Rated
Compliance
Safety Listing cULus Classified
Location Rating Damp
Energy Star No
CEC Status Lawful for sale in California
RoHS Compliant Yes
NSF Approved Yes - Approved
Packaging
Each UPC 045923164026
Each Quantity 1
Each Length (in.) 35.43
Each Width (in.) 1.00
Each Height (in.) 1.00
Each Weight (lb.) 0.66
Each Cube (CuFt.) 0.0199
Pack Type Sleeve
Inner Quantity 0
Inner Length (in.) 0.00
Inner Width (in.) 0.00
Inner Height (in.) 0.00
Inner Weight (lb.) 0.00
Inner Cube (CuFt.) 0.0000
Case UPC 10045923164023
Case Quantity 10
Case Length (in.) 36.00
Case Width (in.) 7.56
Case Height (in.) 4.92
Case Weight (lb.) 6.60
Case Cube (CuFt.)

0.7514
