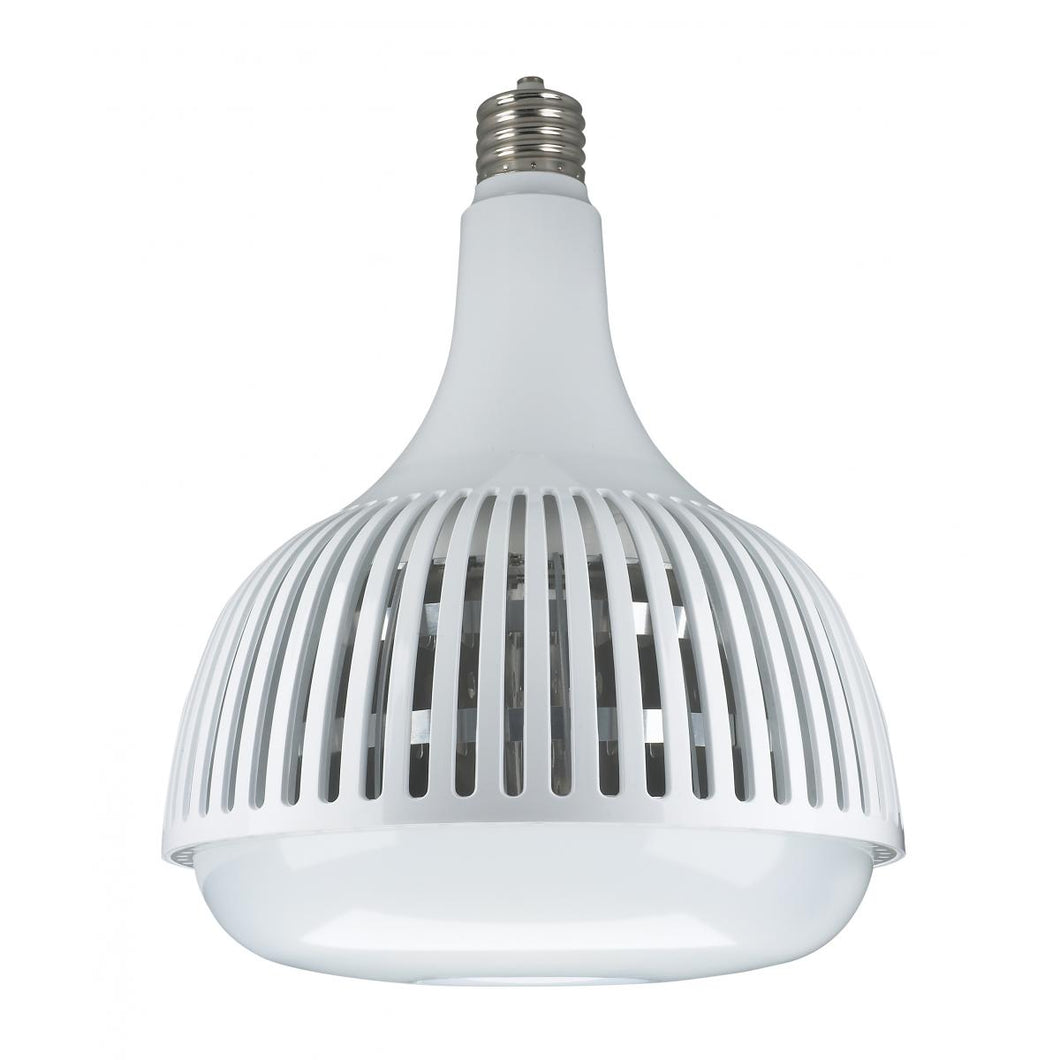

130 watt - LED HID Replacement; 5000K; Mogul extended base; 120-277 volts
General
| Status | Active |
| Watts | 130 |
| HID Equivalent | 400 |
| Volts | 120V-277V |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | Translucent White |
| CCT (Kelvin) | 5000 |
| Temperature | Natural Light |
| CRI | 80 |
| Lumens | 16100 |
| Beam Spread | 115 |
| Dimmable | Non-Dimmable |
| Hours Rated | 50000 |
| Lamp Type | Hi-Bay |
| Technology | LED |
| Min Compartment Size | Length 16.5 in. Width 16.5 in. Height 13 in. |
Electrical
| Watts | 130 |
| HID Equivalent | 400 |
| Volts | 120V-277V |
| Operating Frequency | 50-60 Hz |
| CCT (Kelvin) | 5000 |
| Temperature | Natural Light |
| CRI | 80 |
| Lumens | 16100 |
| Beam Spread | 115 |
| Dimmable | Non-Dimmable |
| Dimming Type | N/A |
| Power Factor | 0.99/0.97 |
| Hours Rated | 50000 |
| Operating Temperature | -40C (-40F) to a maximum of +60C (+140F) |
Physical
| MOL | 12.41 |
| MOD | 9.66 |
| Base | Mogul Extended |
| ANSI Base | EX39 |
| Finish | Translucent White |
| Housing Color | White |
| Weight (lb.) | 2.88 |
Additional Information
| Enclosure Rating | Enclosed Rated Lamp |
| Min Compartment Size | Length 16.5 in. Width 16.5 in. Height 13 in. |
| Rated For Enclosed Fixture | Yes |
| Warranty | 5 Year Limited - Hi-Pro |
Compliance
| Safety Listing | cULus |
| Location Rating | Damp |
| Energy Star | No |
| DLC Approved | Yes |
| DLC ID | PLMLA3J8NN0K |
| CEC Status | Lawful for sale in California |
| RoHS Compliant | Yes |
| SDS Sheet | LED Lamp |
Packaging
| Each UPC | 045923131158 |
| Each Quantity | 1 |
| Each Length (in.) | 9.65 |
| Each Width (in.) | 9.65 |
| Each Height (in.) | 12.72 |
| Each Weight (lb.) | 3.62 |
| Each Cube (CuFt.) | 0.6647 |
| Pack Type | Box |
| Inner Quantity | 0 |
| Inner Length (in.) | 0.00 |
| Inner Width (in.) | 0.00 |
| Inner Height (in.) | 0.00 |
| Inner Weight (lb.) | 0.00 |
| Inner Cube (CuFt.) | 0.0000 |
| Case UPC | 10045923131155 |
| Case Quantity | 4 |
| Case Length (in.) | 20.20 |
| Case Width (in.) | 20.08 |
| Case Height (in.) | 13.98 |
| Case Weight (lb.) | 16.64 |
| Case Cube (CuFt.) | 3.1821 |
