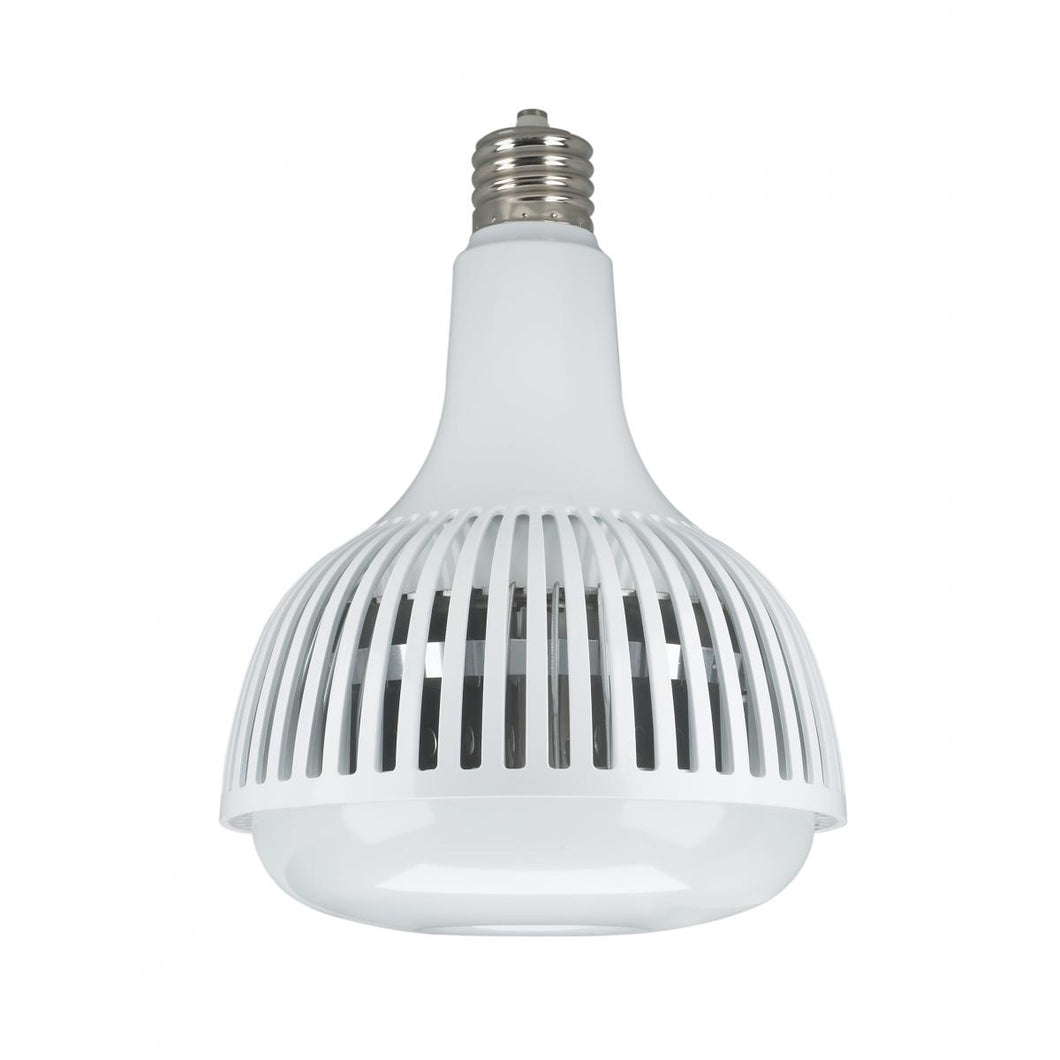

80 watt - LED HID Replacement; 4000K; Mogul extended base; 120-277 volts
General
Status | Active |
Watts | 80 |
HID Equivalent | 250 |
Volts | 120V-277V |
Base | Mogul Extended |
ANSI Base | EX39 |
Finish | Translucent White |
CCT (Kelvin) | 4000 |
Temperature | Cool White |
CRI | 80 |
Lumens | 9300 |
Beam Spread | 115 |
Dimmable | Non-Dimmable |
Hours Rated | 50000 |
Lamp Type | Hi-Bay |
Technology | LED |
Min Compartment Size | Length 13.5 in. Width 13.5 in. Height 12 in. |
Electrical
Watts | 80 |
HID Equivalent | 250 |
Volts | 120V-277V |
Operating Frequency | 50-60 Hz |
CCT (Kelvin) | 4000 |
Temperature | Cool White |
CRI | 80 |
Lumens | 9300 |
Beam Spread | 115 |
Dimmable | Non-Dimmable |
Dimming Type | N/A |
Power Factor | 0.99/0.93 |
Hours Rated | 50000 |
Operating Temperature | -40C (-40F) to a maximum of +60C (+140F) |
Physical
MOL | 10.13 |
MOD | 7.47 |
Base | Mogul Extended |
ANSI Base | EX39 |
Finish | Translucent White |
Housing Color | White |
Weight (lb.) | 1.72 |
Additional Information
Enclosure Rating | Enclosed Rated Lamp |
Min Compartment Size | Length 13.5 in. Width 13.5 in. Height 12 in. |
Rated For Enclosed Fixture | Yes |
Warranty | 5 Year Limited - Hi-Pro |
Compliance
Safety Listing | cULus |
Location Rating | Damp |
Energy Star | No |
DLC Approved | Yes |
DLC ID | PLO2I150NDKE |
CEC Status | Lawful for sale in California |
RoHS Compliant | Yes |
SDS Sheet | LED Lamp |
Packaging
Each UPC | 045923131127 |
Each Quantity | 1 |
Each Length (in.) | 7.48 |
Each Width (in.) | 7.48 |
Each Height (in.) | 10.43 |
Each Weight (lb.) | 2.16 |
Each Cube (CuFt.) | 0.3275 |
Pack Type | Box |
Inner Quantity | 0 |
Inner Length (in.) | 0.00 |
Inner Width (in.) | 0.00 |
Inner Height (in.) | 0.00 |
Inner Weight (lb.) | 0.00 |
Inner Cube (CuFt.) | 0.0000 |
Case UPC | 10045923131124 |
Case Quantity | 4 |
Case Length (in.) | 15.87 |
Case Width (in.) | 15.75 |
Case Height (in.) | 11.69 |
Case Weight (lb.) | 10.25 |
Case Cube (CuFt.) | 1.6397 |
