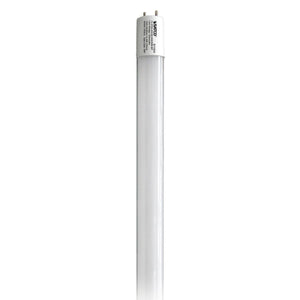

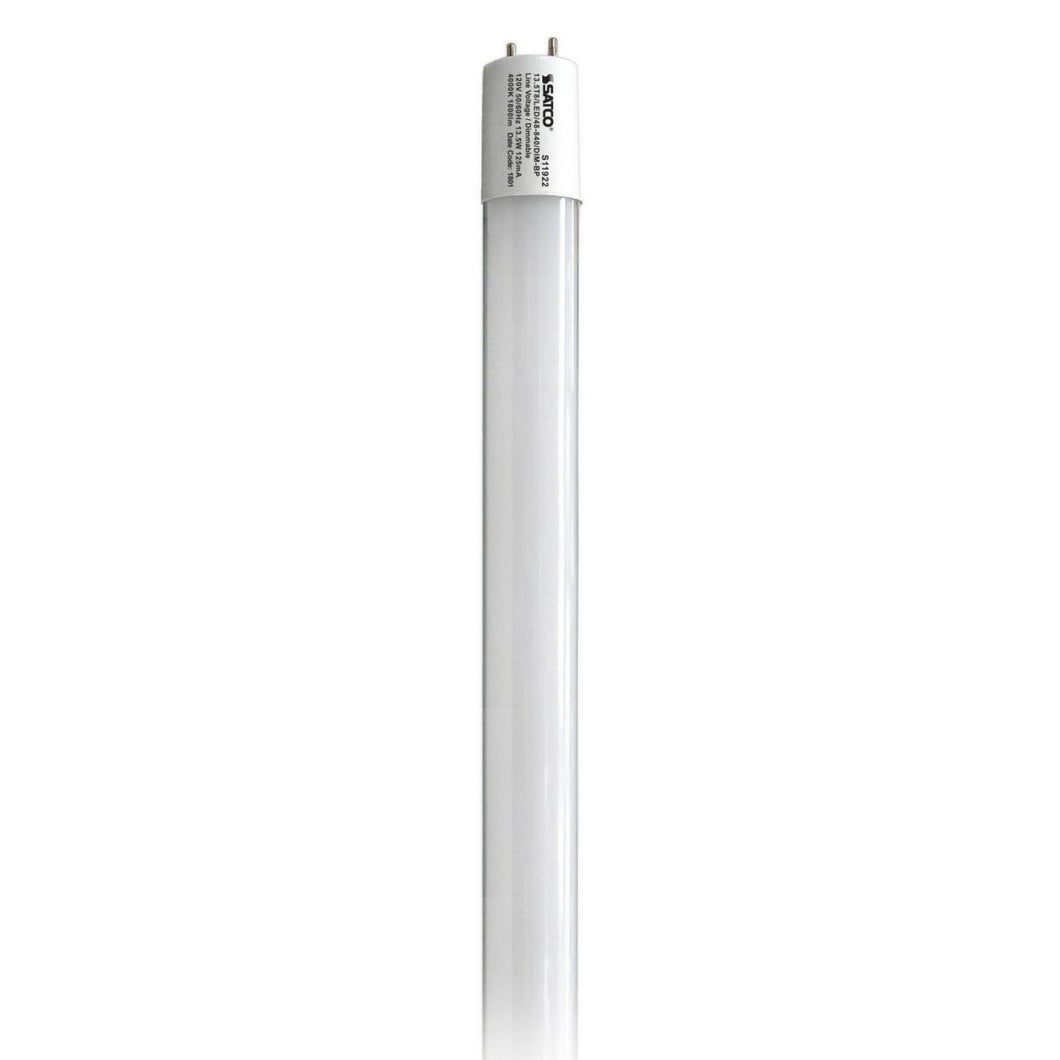

13.5 watt T8 LED; 4000K; Medium Bi Pin base; 50000 Average rated hours; 1800 Lumens; Dimmable; Type B; Ballast Bypass; Single Ended Wiring
General
Status | Active |
Watts | 13.5 |
Volts | 120V |
Ballast Type | Type B |
Shape | T8 |
Base | Medium Bi Pin |
ANSI Base | G13 |
Nominal Length | 48 |
Finish | Frosted |
CCT (Kelvin) | 4000 |
Temperature | Cool White |
CRI | 82 |
Lumens | 1800 |
Beam Spread | 220 |
Dimmable | Yes Dimmable |
Hours Rated | 50000 |
Lamp Type | Linear |
Technology | LED |
Electrical
Watts | 13.5 |
Volts | 120V |
Ballasting Requirements | Ballast Bypass; Direct wire 120V line voltage; No ballast or external driver required |
Ballast Type | Type B |
CCT (Kelvin) | 4000 |
Temperature | Cool White |
CRI | 82 |
Lumens | 1800 |
Beam Spread | 220 |
Dimmable | Yes Dimmable |
Power Factor | 0.9 |
Hours Rated | 50000 |
Operating Temperature | -20C (-4F) to a maximum of +45C (+113F) |
Physical
MOL | 48 |
MOD | 1 |
Nominal Length | 48 |
Shape | T8 |
Base | Medium Bi Pin |
ANSI Base | G13 |
Finish | Frosted |
Lens Finish | Frosted |
Lens Material | Glass |
Housing Color | White |
Additional Information
Additional Info | All glass tube |
Tube Guard Use | Approved for use with tube guards |
Installation Notes | Install only in non-shunted lampholders |
Warranty | 5 Year Limited - T8 LED Bulbs - Ballast Bypass |
Compliance
Safety Listing | cULus Classified |
Location Rating | Damp |
Energy Star | No |
DLC Approved | Yes |
DLC ID | PLCHL8NP6U2O |
CEC Status | Lawful for sale in California |
RoHS Compliant | Yes |
FCC Compliant | Yes |
NSF Approved | Yes - Approved |
Packaging
Each UPC | 045923119224 |
Each Quantity | 1 |
Each Length (in.) | 48.00 |
Each Width (in.) | 1.00 |
Each Height (in.) | 1.00 |
Each Weight (lb.) | 0.50 |
Each Cube (CuFt.) | 0.0269 |
Pack Type | Sleeve |
Inner Quantity | 0 |
Inner Length (in.) | 0.00 |
Inner Width (in.) | 0.00 |
Inner Height (in.) | 0.00 |
Inner Weight (lb.) | 0.00 |
Inner Cube (CuFt.) | 0.0000 |
Case UPC | 10045923119221 |
Case Quantity | 25 |
Case Length (in.) | 49.00 |
Case Width (in.) | 5.90 |
Case Height (in.) | 5.90 |
Case Weight (lb.) | 13.00 |
Case Cube (CuFt.) | 0.9572 |
