S11915 18.5T8/LED/48-835/BP 120-277V

S11915 18.5T8/LED/48-835/BP 120-277V

Regular price
$10.95
Sale price
$10.95
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more

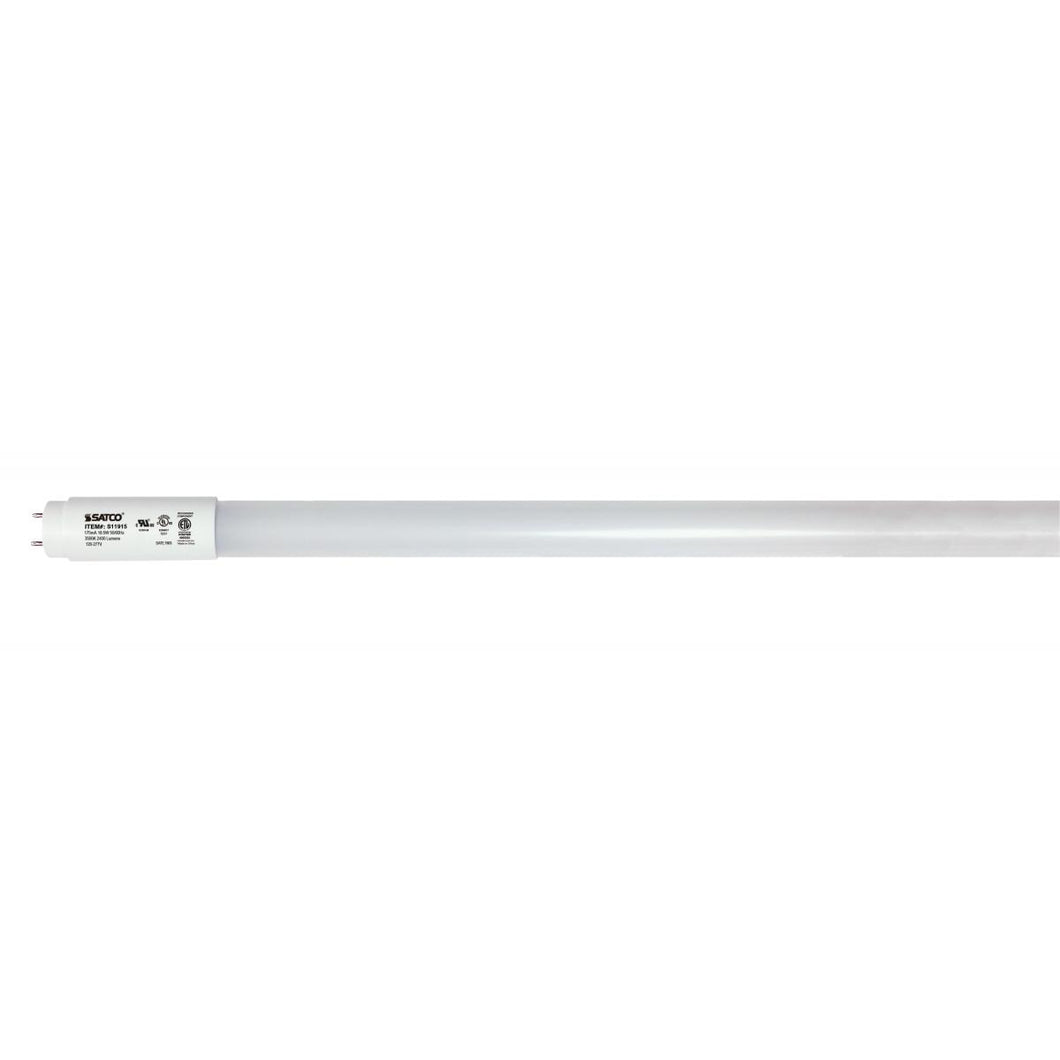

18.5 watt T8 LED; 3500K; Medium Bi Pin base; 50000 Average rated hours; 120-277 Volts; Type B; Ballast Bypass; Single or Double Ended Wiring



General
Status Active
Watts 18.5
Fluorescent Equivalent 32
Volts 120V-277V
Ballast Type Type B
Shape T8
Base Medium Bi Pin
ANSI Base G13
Nominal Length 48
Finish Frosted
CCT (Kelvin) 3500
Temperature Neutral White
CRI 80
Lumens 2400
Beam Spread 180
Dimmable Non-Dimmable
Hours Rated 50000
Lamp Type Linear
Technology LED
Electrical
Watts 18.5
Fluorescent Equivalent 32
Volts 120V-277V
Ballasting Requirements Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Ballast Type Type B
CCT (Kelvin) 3500
Temperature Neutral White
CRI 80
Lumens 2400
Beam Spread 180
Dimmable Non-Dimmable
Dimming Type N/A
Power Factor 0.92
Hours Rated 50000
Operating Temperature -25C (-13F) to a maximum of +45C (+113F)
Physical
MOL 48
MOD 1
Nominal Length 48
Shape T8
Base Medium Bi Pin
ANSI Base G13
Finish Frosted
Lens Finish Frosted
Lens Material Glass
Weight (lb.) 0.85
Additional Information
Additional Info Installation protection - will not light if ballast is not bypassed.
Shatter-Proof Type PET Coated
Installation Notes Two Installation Options - 1. Double Ended Wiring or 2. Single Ended Wiring
Warranty 5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety Listing cULus Classified
Location Rating Damp
Energy Star No
DLC Approved Yes
DLC ID PLD6BIXNDD9U
CEC Status Lawful for sale in California
RoHS Compliant Yes
FCC Compliant Yes
NSF Approved ETL Sanitation listed (conforms to NSF)
Packaging
Each UPC 045923119156
Each Quantity 1
Each Length (in.) 48.00
Each Width (in.) 7.56
Each Height (in.) 4.92
Each Weight (lb.) 0.85
Each Cube (CuFt.) 1.0019
Pack Type Sleeve
Inner Quantity 0
Inner Length (in.) 0.00
Inner Width (in.) 0.00
Inner Height (in.) 0.00
Inner Weight (lb.) 0.00
Inner Cube (CuFt.) 0.0000
Case UPC 10045923119153
Case Quantity 25
Case Length (in.) 50.20
Case Width (in.) 7.30
Case Height (in.) 7.30
Case Weight (lb.) 15.90
Case Cube (CuFt.) 1.5012
