Energy Efficient Lighting

>

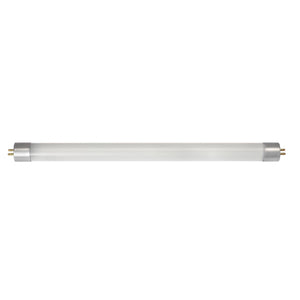

S11905 4W/LED/T5/840/BP

S11905 4W/LED/T5/840/BP

Regular price
$6.95
Sale price
$6.95
Tax included. Shipping calculated at checkout.

4W T5 LED; Miniature bi-pin base; 4000K; 50000 Average rated hours; 400 Lumens; 120-277V; Type B; Ballast Bypass; Double Ended Wiring



General
Status Active
Watts 4
Fluorescent Equivalent 8
Volts 120V-277V
Ballast Type Type B
Shape T5
Base Miniature Bi Pin
ANSI Base G5
Nominal Length 12
Finish Frosted
CCT (Kelvin) 4000
Temperature Cool White
CRI 82
Lumens 400
Beam Spread 240
Dimmable Non-Dimmable
Hours Rated 50000
Lamp Type Linear
Technology LED
Electrical
Watts 4
Fluorescent Equivalent 8
Volts 120V-277V
Ballasting Requirements No ballast or external driver required
Ballast Type Type B
Operating Frequency 50/60 Hz
CCT (Kelvin) 4000
Temperature Cool White
CRI 82
Lumens 400
Beam Spread 240
Dimmable Non-Dimmable
Dimming Type N/A
Power Factor 0.9
Hours Rated 50000
Operating Temperature -25C (-13F) to a maximum of +45C (+113F)
Physical
MOL 11.91
MOD 0.63
Nominal Length 12
Shape T5
Base Miniature Bi Pin
ANSI Base G5
Finish Frosted
Weight (lb.) 0.08
Additional Information
Additional Info Replaces F8T5/CW lamps
Shatter-Proof Type PET Coated
Installation Notes Direct wire 120-277V line voltage; Double ended wiring
Warranty 5 Year Limited - T5 LED Bulbs - Ballast Bypass
Compliance
Safety Listing cULus Classified
Location Rating Damp
Energy Star No
CEC Status Lawful for sale in California
RoHS Compliant Yes
NSF Approved Yes - Approved
Packaging
Each UPC 045923119057
Each Quantity 1
Each Length (in.) 12.00
Each Width (in.) 0.90
Each Height (in.) 0.90
Each Weight (lb.) 0.08
Each Cube (CuFt.) 0.0055
Pack Type Box
Inner UPC 20045923119051
Inner Quantity 10
Inner Length (in.) 13.20
Inner Width (in.) 5.30
Inner Height (in.) 2.80
Inner Weight (lb.) 0.80
Inner Cube (CuFt.) 0.1099
Case UPC 10045923119054
Case Quantity 100
Case Length (in.) 14.76
Case Width (in.) 11.02
Case Height (in.) 12.60
Case Weight (lb.) 8.07
Case Cube (CuFt.) 1.1501
