S16502 FC8T9/LED/CIR/865/BP

S16502 FC8T9/LED/CIR/865/BP

Regular price
$14.95
Sale price
$14.95
Tax included. Shipping calculated at checkout.
Quantity must be 1 or more

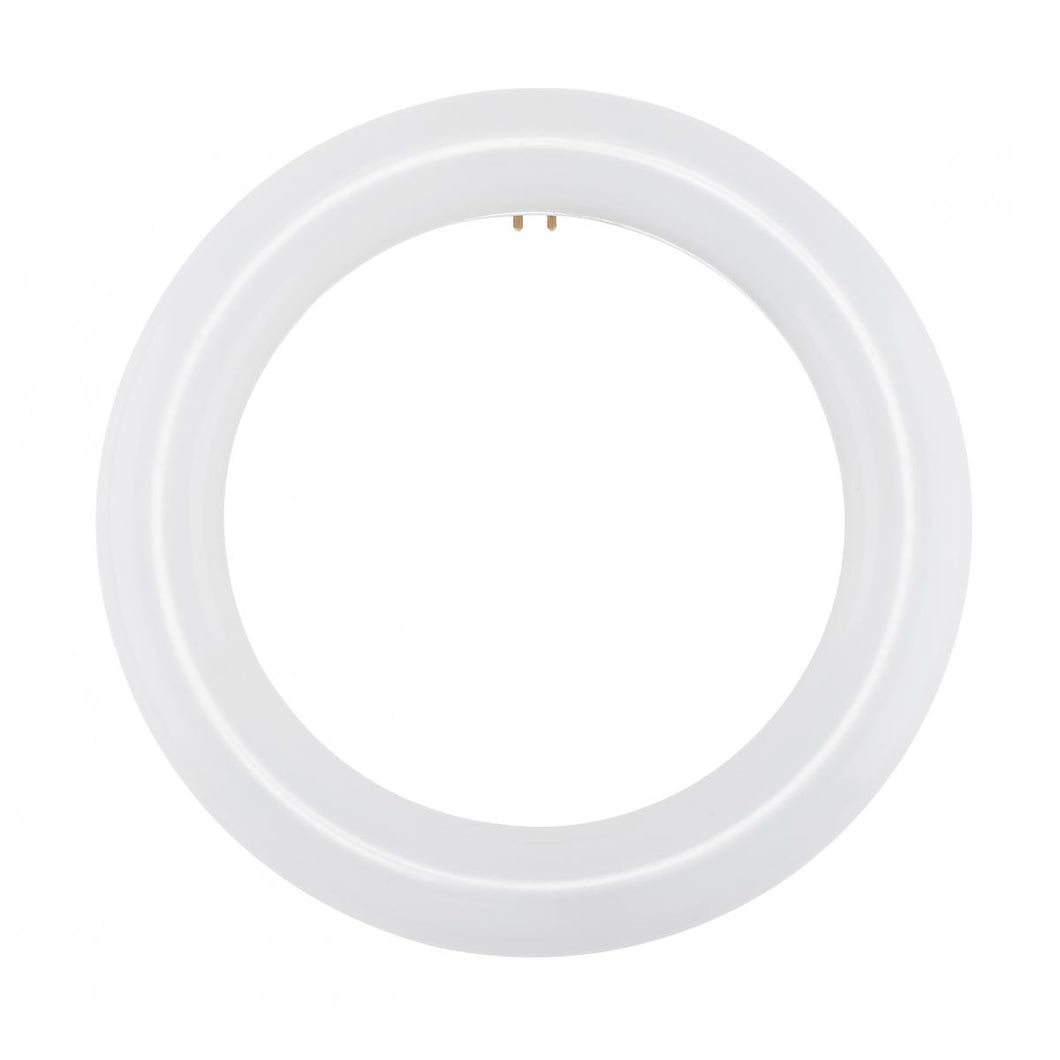

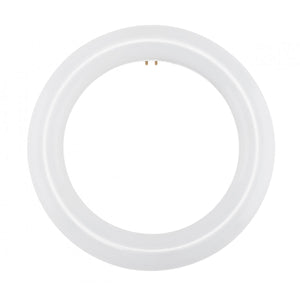

LED Circline; 11W; T9; 6500K; G10Q Base; 120-277V; Type B; Ballast Bypass



General
Status Active
Watts 11
Fluorescent Equivalent 22
Volts 120V-277V
Ballast Type Type B
Shape T9
Base 4-Pin
ANSI Base G10q
Finish Frosted
CCT (Kelvin) 6500
Temperature Daylight
CRI 80
Lumens 1210
Beam Spread 135
Dimmable Non-Dimmable
Hours Rated 50000
Lamp Type Circline
Technology LED
Electrical
Watts 11
Fluorescent Equivalent 22
Volts 120V-277V
Ballasting Requirements Ballast Bypass
Ballast Type Type B
Operating Frequency 50/60 Hz
CCT (Kelvin) 6500
Temperature Daylight
CRI 80
Lumens 1210
Beam Spread 135
Dimmable Non-Dimmable
Dimming Type N/A
Power Factor 0.9
Hours Rated 50000
THD < 25
Operating Temperature -25C (-13F) to a maximum of +45C (+113F)
Physical
MOL 8
MOD 8
Shape T9
Base 4-Pin
ANSI Base G10q
Finish Frosted
Housing Color White
Weight (lb.) 0.24
Additional Information
Additional Info Replaces 22W fluorescent Circlines
Warranty 5 Year Limited - T8 LED Bulbs - Ballast Bypass
Compliance
Safety Listing cETLus
Location Rating Damp
Energy Star No
CEC Status Lawful for sale in California
RoHS Compliant Yes
SDS Sheet LED Lamp
Packaging
Each UPC 045923165023
Each Quantity 1
Each Length (in.) 8.00
Each Width (in.) 9.13
Each Height (in.) 9.33
Each Weight (lb.) 0.24
Each Cube (CuFt.) 0.3824
Pack Type Box
Inner Quantity 0
Inner Length (in.) 0.00
Inner Width (in.) 0.00
Inner Height (in.) 0.00
Inner Weight (lb.) 0.00
Inner Cube (CuFt.) 0.0000
Case UPC 10045923165020
Case Quantity 12
Case Length (in.) 18.50
Case Width (in.) 9.10
Case Height (in.) 9.50
Case Weight (lb.) 2.88
Case Cube (CuFt.) 0.8975
